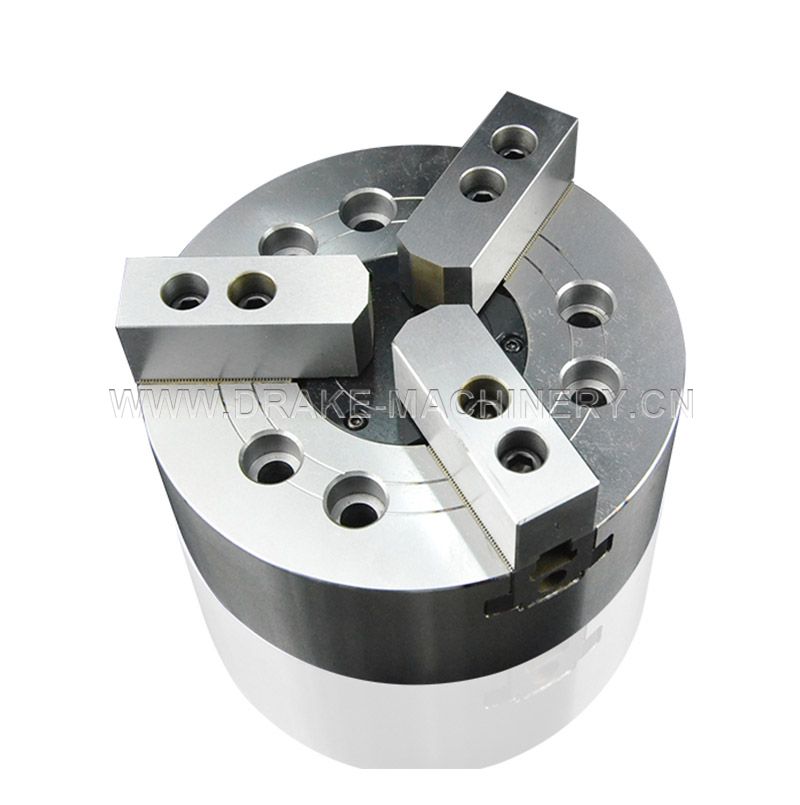

Product Feature:
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
With flange connection, A connection.
产品型号
产品参数
Performance parameters
| Plunger Stroke (mm) | Jaw Stroke (Diameter)(mm) | Max.Speed (r.p.m) | Max.Pull Force (kgf) | Max.Gripping Force (kgf) | Max.Hydr. Pressure (kgf/cm²) | Net weight (kg) | Matching Cylinder | Gripping Range |
| 10 | 5.4 | 7000 | 1730 | 3570 | 29 | 6.1 | TK536 | Φ10~Φ135 |
| 12 | 5.5 | 6000 | 2140 | 5710 | 28 | 12.5 | TK646 | Φ15~Φ169 |
| 16 | 7.4 | 5000 | 2549 | 8769 | 27 | 23.6 | TK852 | Φ20~Φ210 |
| 19 | 8.8 | 4200 | 4280 | 11010 | 27 | 33.7 | TK1075 | Φ25~Φ254 |
| 23 | 10.6 | 3300 | 5500 | 14380 | 27 | 55.3 | TK1291 | Φ30~Φ304 |
| 23 | 10.6 | 2500 | 7240 | 18250 | 25 | 106.8 | TK1512 | Φ35~Φ381 |
| 23 | 10.6 | 2000 | 7240 | 18250 | 25 | 171 | TK1512 | Φ40~Φ450 |

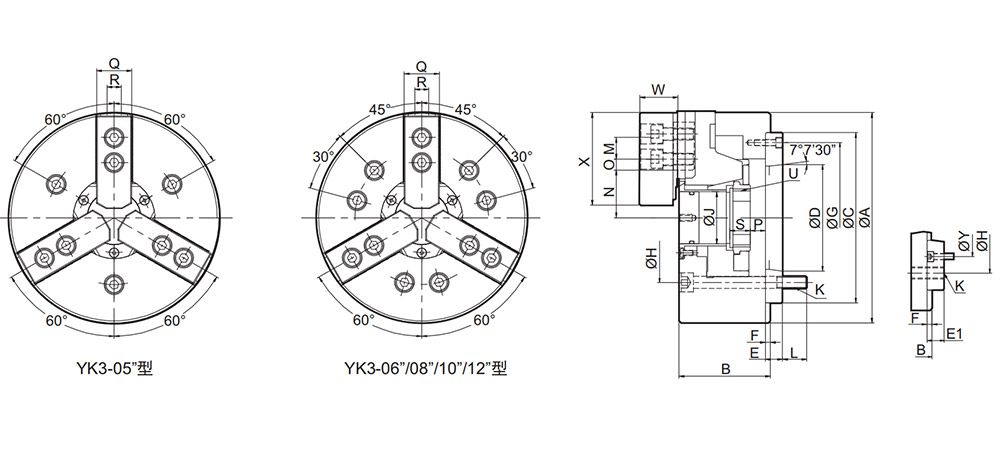

Size parameter
| C (h6) | D | E | E1 | F | G | H | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | U | W | X | Y | Y |
| 110 | 63.513 | 20 | / | 4 | 96 | 82.6 | 33 | 3-M8×1.25P | 15 | 14 | / | / | 19 | 6 | 1 | -9 | 25 | 10 | 20 | M40×1.5P | 31.5 | 62 | / | / |
| 140 | 82.563 | 15 | / | 5 | 116 | 104.8 | 45 | 6-M10×1.5P | 16 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | M55×2P | 37 | 73 | / | / |
| 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 52 | 6-M12×1.75P | 18 | 25 | 38.7 | 35 | 29.75 | 14.75 | 14.5 | -1.5 | 35 | 14 | 20.5 | M60×2P | 39 | 95 | 104.8 | 104.8 |
| 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 75 | 6-M16×2P | 19 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | M85×2P | 43 | 110 | 133.4 | 133.4 |
| 220 | 139.719 | 18 | / | 6 | 190 | 171.4 | 91 | 6-M16×2P | 25 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | M100×2P | 51 | 129 | / | / |
| 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | 117.5 | 6-M20×2.5P | 28 | 43 | 82.3 | 77 | 46 | 13 | 7 | -16 | 62 | 22 | 42.5 | M130×2P | 66 | 165 | 171.4 | 171.4 |
| 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | 117.5 | 6-M20×2.5P | 28 | 43 | 82.7 | 76.7 | 79.25 | 13.75 | 7 | -16 | 62 | 24 | 42.5 | M130×2P | 66 | 165 | 171.4 | 171.4 |
