产品详情

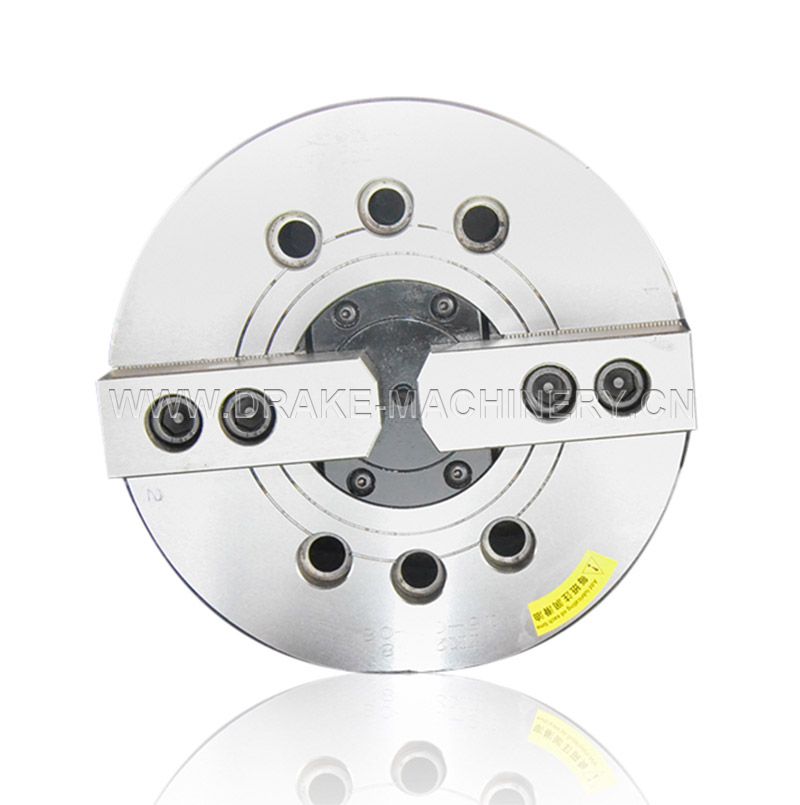

Product Feature:
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
With flange connection, A connection.
产品型号
产品参数
| Performance parameters | |||||||||||
| MODEL/SPEC. | Nose Of Spindle | Thru-Hole (Diameter) (mm) | Plunger Stroke (mm) | Jaw Stroke (Diameter)(mm) | Max.Speed (r.p.m) | Max.Pull Force (kgf) | Max.Gripping Force (kgf) | Max.Hydr. Pressure (kgf/cm²) | Net weight (kg) | Matching Cylinder | Gripping Range |
| YK2-05'' | A24 | 33 | 10 | 5.4 | 7000 | 1120 | 2340 | 19 | 6.5 | TK536 | Φ10~Φ135 |
| YK2-06'' | A25 | 45 | 12 | 5.5 | 6000 | 1420 | 3770 | 18.5 | 13.1 | TK646 | Φ15~Φ169 |
| YK2-08'' | A26(A25) | 52 | 16 | 7.4 | 4800 | 2240 | 5710 | 17 | 23 | TK852 | Φ20~Φ210 |
| YK2-10'' | A28(A26) | 75 | 19 | 8.8 | 4200 | 2850 | 7440 | 18 | 35.9 | TK1075 | Φ25~Φ254 |
| YK2-12'' | A28 | 91 | 23 | 10.6 | 3300 | 3670 | 9690 | 18 | 56.2 | TK1291 | Φ30~Φ304 |
| YK2-15'' | A211(A28) | 117.5 | 23 | 10.6 | 2500 | 4790 | 12130 | 17 | 103.2 | TK1512 | Φ50~Φ381 |
| Size parameter | ||||||||||||||||||||||||||

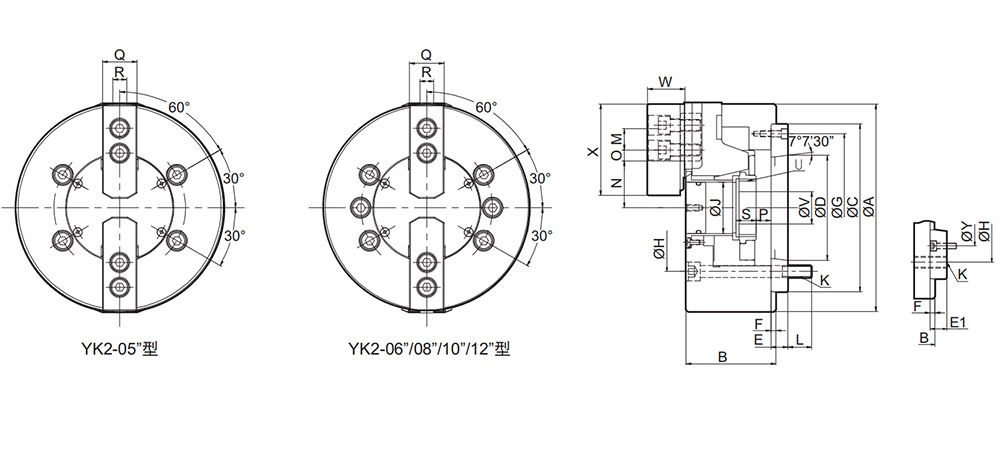

| MODEL/SPEC. | A | B | C (h6) | D | E | E1 | F | G | H | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P1 min. | Q | R | S | U | W | X | Y |
| YK2-05'' | 135 | 60 | 110 | 63.513 | 20 | / | 4 | 96 | 82.6 | 33 | 4-M10×1.5P | 15 | 14 | 26.5 | 23.8 | 19 | 6 | 1 | -9 | 25 | 10 | 20 | M40×1.5P | 31.5 | 62 | / |
| YK2-06'' | 169 | 81 | 140 | 82.563 | 15 | / | 5 | 116 | 104.4 | 45 | 6-M10×1.5P | 16 | 20 | 32 | 29.25 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | M55×2P | 37 | 73 | / |
| YK2-08'' | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 52 | 6-M12×1.75P | 18 | 25 | 38.7 | 35 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | M60×2P | 39 | 95 | 104.8 |
| YK2-10'' | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 75 | 6-M16×2P | 19 | 30 | 51 | 46.6 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | M85×2P | 43 | 110 | 133.4 |
| YK2-12'' | 304 | 110 | 220 | 139.719 | 18 | / | 6 | 190 | 171.4 | 91 | 6-M16×2P | 25 | 30 | 61.3 | 56 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | M100×2P | 51 | 129 | / |
| YK2-15'' | 380 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | 117.5 | 6-M20×2.5P | 28 | 43 | 82.7 | 77.4 | 46 | 13 | 8 | -15 | 62 | 21 | 42.5 | M130×2P | 66 | 165 | / |
