产品详情
可选卡盘爪
（1）标准卡爪；（2）工字钢和槽钢卡爪；（3）双滚轮卡爪；
（2）卡爪夹持范围：10-220mm；
推荐齿轮
从动齿轮：RY240-00-0260 从动齿轮 (Mn3Z180)
主动齿轮：RY240-00-0250 主动齿轮 (Mn3Z45)，主动齿轮可定制。
u 推荐减速机及电机功率
推荐减速机：信宝VRB-115减速机 速比：7
推荐电机功率：2.9KW（如经常夹持大口径管材，重量250Kg及以上，建议电机功率为4.4KW）
结构特点：
1. 一体式全封闭斜齿轮传动结构：防尘性能更高，运行稳定性更高，使用寿命更长，用户体验更佳；
2. 便捷的同心度调试及锁紧组件：终端用户可轻松校正整机旋转同心度，提升整机精度和稳定性；
3. 标配开爪到位感应检测：短尾切割模式更安全，实现自动短尾切割，降低整机碰撞风险；
4. 铝制机身表面氧化工艺处理：抗污性能更佳，转动惯量更低。

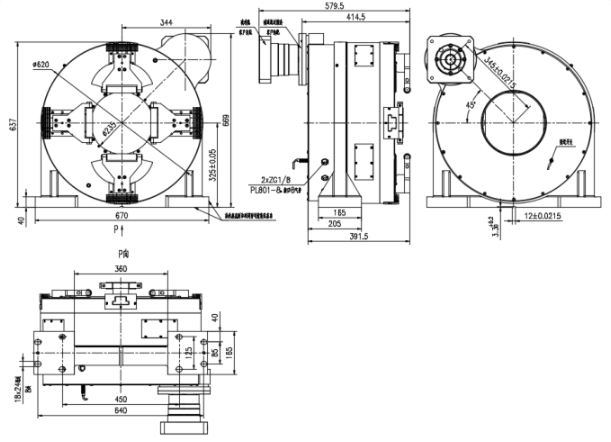

产品型号
产品参数
| Performance Parameters | |||||||
| Specification | Outer Diameter( mm) | Spindle Bore(mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ620 | Φ235 | 325±0.05 | 311 | 49000 | ≤0.05 | ≤0.05 | |
| RY220-00-0000 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | Holdup Time (h) | IP Grade |
| 105 | 2.8±10% | Φ10-φ220 | 0.3-0.9 | 150 | 12 | / | |
| Appropriative jaws can be customized according to pipe fittings | |
| Standard option | GB / T3094-2000 Cold drawn special-shaped steel pipe, GB / T706-2008 Hot-rolled Steel, GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation |
| Chuck model | RY220 Front chuck |
| Clamping range | 10-220mm (the specification is within the allowable load-bearing range) |
| Standard jaw roller length | 113mm |
| Lengthen jaws | 211mm |
| Round Tube | 10-220mm |
| Square Tube | The circumscribed circle is less than 220mm square tube (the maximum square tube is 150mm) |
| Rectangular Tube | The minimum short side is 10mm, and the circumscribed circle is less than 220mm rectangular tube (maximum size 200*80) |
| Oval Tube/Flat Oval Tube | The short axis is at least 10mm, and the long axis is less than 220mm oval tube |
| I-beam | With standard jaws：Holds up to No.10 I-beam |
| With Lengthen jaws：Holds up to No.20a I-beam | |
| Channel steel | With standard jaws：Maximum clamping No. 10 channel steel |
| With Lengthen jaws: Maximum clamping No. 20 channel steel | |
| Equilateral angle steel | With standard jaws：Maximum clamping equilateral angle steel No. 10 |
| Other specifications customization | |
| Unequal angle steel | With extended jaws：Maximum clamping No.10/8 unequal angle steel |
| Other specifications customization | |
