产品详情
可选卡盘爪
（3）标配卡爪；可选卡爪：工字钢和槽钢卡爪；
（4）卡爪夹持范围：
推荐齿轮
从动齿轮：RY240-10-0060 从动齿轮 (Mn2.5Z72)
主动齿轮：RY240-10-0070 主动齿轮 (Mn2.5Z24)，主动齿轮可定制。
u 推荐减速机及电机功率
推荐减速机：信宝 VRB-090，减速机速比：7
推荐电机功率：1.8KW
结构特点：
1. 一体式全封闭斜齿轮传动结构：防尘性能更强，运行更平稳，使用寿命更长，用户体验更佳；
2. 全系列通用安装尺寸：RY130、RY160、RY220系列后卡盘尺寸通用，节省每个用户的床身管理成本；
3. 精磨卡盘整体：卡盘整体作为安装定位基准面，方便用户安装调试；
4. 内藏式前置气缸传动结构：气缸直接推动，夹紧力随气压变化稳定可靠，为高承载性能提供基础；
5. 卡爪全密封设计：RY130、RY160、RY220系列筒式后卡盘采用独特的全密封卡爪设计，降低了卡死的可能性，减少了人工维护的需求。

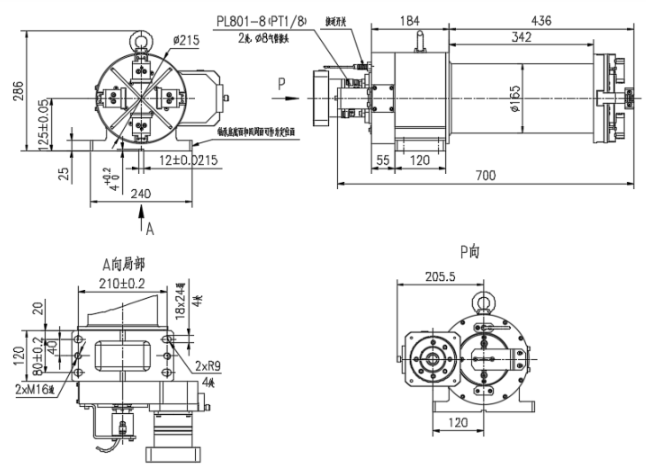

产品型号
产品参数
Specification | Outer Diameter( mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ 215 | 125±0.05 | 85 | 2900 | ≤0.10 | ≤0.10 | |
| RY220-10-0000 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | IP Grade |
| 30 | 1.2±10% | 10-220 | 0.3-0.9 | 150 | / |
| Appropriative jaws can be customized according to pipe fittings | |
| Selection criteria | GB / T3094-2000 Cold drawn special-shaped steel pipe GB / T706-2008 Hot-rolled Steel GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation. |
| Chuck model | RY220 rear chuck |
| Clamp range | Clamping block 1:The first position of inner clamp is10-70mm,the second position is 42-102mm; The first position of outer support is 130-190mm, the second position is 162-222mm; Clamping block 2 : The first position of inner clamp is 68-128mm, the second position is 100-160mm; Clamping block 3( with I-beam channel steel jaws): The first position of short clamp is 110-170mm, the second position is 140-200mm; long clamp is 45-105mm; (specification within the allowable load-bearing range) |
| Jaw length | Length of block 1:length of inner clamp is 50mm,length of out support is 18mm; length of block 2 is 140mm; length of block 3( with I-beam channel steel jaws) :length of short jaw is 31mm,length of long jaws is 205mm; |
| Round tube | The inner clamp is 10-160mm, and the outer support is 130-222mm; individual specifications needs to customize appropriative jaws. |
| Square tube | The maximum size of the square tube is 100x100mm with the first jaw,and 150x150mm with the second jaw ;other specifications need customized special jaws; |
| Rectangular tube | The minimum length of the short side is 10mm, and the maximum length of the long side is 200mm for rectangular tube; other specifications need to customize appropriative jaws; |
| Oval Tube/Flat Oval Tube | The minimum length of the short axis is 10mm, and the maximum length of the long axis is 200mm for oval tube; other specifications need to customize appropriative jaws; |
| I-beam | Using I-beam channel steel jaws can hold up to No. 20a I-beam; |
| Channel steel | The I-beam channel steel jaws can hold up to No. 20 channel steel; |
| Equilateral angle steel | Clamping block 1:hold up to No. 4.5; Clamping block 2:hold up to No. 12.5; other specifications need to customize appropriative jaws; |
| Unequal angle steel | Standard jaws:within No5/3.2; Clamping block 2: within No.12.5/8; other specifications need to customize appropriative jaws; |
