产品详情
可选卡盘爪：
（3）标准爪；可选钳口：工字钢和槽钢钳口；
（4）爪夹持范围：
推荐齿轮：
从动齿轮：RY240-10-0310 从动齿轮 (Mn2.5Z72)
主动齿轮：RY240-10-0320 主动齿轮 (Mn2.5Z24)，主动齿轮可定制。
推荐减速机及电机功率：
推荐减速机：信宝 VRB-090，减速机速比：5.7；推荐电机功率：0.85KW
结构特点：
1. 一体式全封闭斜齿轮传动结构：防尘性能更强，运行更平稳，使用寿命更长，用户体验更佳；
2. 全系列通用安装尺寸：RY130、RY160、RY220系列后卡盘尺寸通用，节省每个用户的床身管理成本；
3. 精磨卡盘整体：卡盘整体作为安装定位基准面，方便用户安装调试；
4. 内藏式前置气缸传动结构：气缸直接推动，夹紧力随气压变化稳定可靠，为高承载性能提供基础；
5. 卡爪全密封设计：RY130、RY160、RY220系列筒式后卡盘采用独特的全密封卡爪设计，降低了卡死的可能性，减少了人工维护的需求。

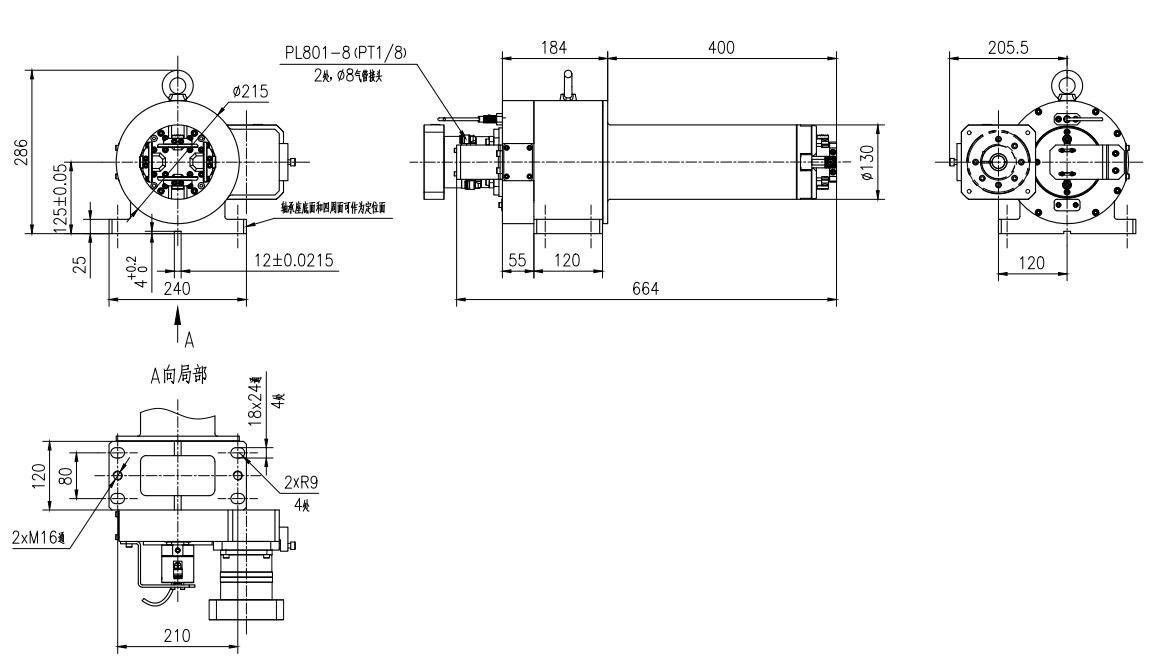

产品型号
产品参数
| Specification | Outer Diameter( mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ 215 | 125±0.05 | 60 | 1500 | ≤0.10 | ≤0.10 | |
| RY130-10-00 00 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | IP Grade |
| 20 | 0.75±10% | 5-130 | 0.3-0.9 | 150 | / |
| Appropriative jaws can be customized according to pipe fittings | |
| Selection criteria | GB / T3094-2000 Cold drawn special-shaped steel pipe GB / T706-2008 Hot-rolled Steel GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation |
| Chuck model | RY130 rear chuck |
| Clamp range | Clamping block 1: inner clamp 55-85mm, outer support 100-130mm; Clamping block 2 : inner clamp 35-65mm; Clamping block 3 clamping: inner clamp 5-35mm, outer support 100-130mm; I-beam channel steel jaw clamping: inner clamp 65-100mm; (specification within the allowable load-bearing range) |
| Jaw length | Length of block 1: 70mm; length of block 2: 105mm; length of block 3: 50mm; outer support 20mm; |
| Round tube | The inner clamp is 5-85mm, and the outer support is 100-130mm; individual specifications needs to customize appropriative jaws. |
| Square tube | The maximum size of the square tube is 85x85; other specifications need customized special jaws; |
| Rectangular tube | The minimum length of the short side is 5mm, and the maximum length of the long side is 85mm for rectangular tube; other specifications need to customize appropriative jaws; |
| Oval Tube/Flat Oval Tube | The minimum length of the short axis is 5mm, and the maximum length of the long axis is 85mm for oval tube; other specifications need to customize appropriative jaws; |
| I-beam | Using I-beam channel steel jaws can hold up to 10 gauge I-beam; |
| Channel steel | The I-beam channel steel jaws can hold up to No. 10 channel steel, of which No. 5-6.3 is held by the clamping block 2; |
| Equilateral angle steel | Clamping block 2: No. 3.6-6.3; Clamping block 3: No. 2-3; other specifications need to customize appropriative jaws; |
| Unequal angle steel | Clamping block 2: No. 5.6/3.6-6.3/4; Clamping block 3: No. 2.5/1.6-3.2/2; other specifications need to customize appropriative jaws; |
