产品详情
可选卡盘爪
（1）标准卡盘爪；（2）工字钢和槽钢卡盘爪；（3）双滚轮卡盘爪；
（2）卡盘夹持范围：10-160mm
推荐齿轮
从动齿轮：RY160B-00-0030 从动齿轮 (Mn2.5Z189)
主动齿轮：RY160B-00-0220 主动齿轮 (Mn2.5Z63)，主动齿轮可定制。
推荐减速机及电机功率
推荐减速机：信宝VRT-110减速机速比：5、7
推荐电机功率：2.9KW（减速机速比5），1.8KW（减速机速比7）
结构特点：
1. 一体式全封闭斜齿轮传动结构：防尘性能更高，运行稳定性更高，使用寿命更长，用户体验更佳；
2. 便捷的同心度调试及锁紧组件：终端用户可轻松校正整机旋转同心度，提升整机精度和稳定性；
3. 标配开爪到位感应检测：短尾切割模式更安全，实现自动短尾切割，降低整机碰撞风险；
4. 滑块自动排屑清灰结构设计：卡盘夹紧时自动排屑，降低卡死可能性，减少手动清洁维护需求；
5. 铝合金机身表面采用氧化工艺处理：抗污性能更佳，转动惯量更低。

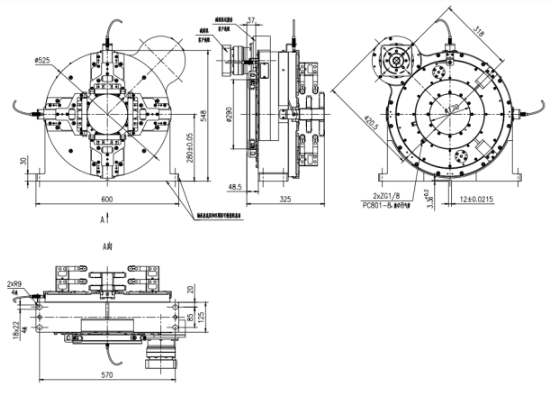

产品型号
产品参数
| Performance Parameters | |||||||
| Specification | Outer Diameter( mm) | Spindle Bore(mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ525 | Φ170 | 280±0.05 | 180 | 30000 | ≤0.05 | ≤0.05 | |
| RY160B-00-0000 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | Holdup Time (h) | IP Grade |
| 81.5 | 1.5±10% | Φ10-φ160 | 0.3-0.9 | 150 | 12 | / | |
| Appropriative jaws can be customized according to pipe fittings | |
| Standard option | GB / T3094-2000 Cold drawn special-shaped steel pipe, GB / T706-2008 Hot-rolled Steel, GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation |
| Chuck model | RY160B Front chuck |
| Clamping range | 10-160mm (the specification is within the allowable load-bearing range) |
| Standard jaw roller length | 108mm |
| Lengthen jaws | 138mm |
| Round Tube | 10-160mm |
| Square Tube | The circumscribed circle is less than 160mm square tube (the maximum square tube is 115mm) |
| Rectangular Tube | The minimum short side is 10mm, and the circumscribed circle is less than 160mm rectangular tube (maximum size 140*80) |
| Oval Tube/Flat Oval Tube | The minimum short axis is 10mm, and the long axis is less than 160mm oval tube |
| I-beam | With standard jaws：Maximum clamping No.10 I-beam |
| With Lengthen jaws：Holds up to No.12.6 I-beam | |
| Channel steel | With standard jaws：Maximum clamping No.10 channel steel |
| With Lengthen jaws：Maximum clamping No.12.6 channel steel | |
| Equilateral angle steel | With standard jaws：Maximum clamping equilateral angle steel No. 10 |
| Other specifications customization | |
| Unequal angle steel | With extended jaws：Maximum clamping 10/8 unequal angle steel |
| Other specifications customization | |
