产品详情
可选卡盘爪
（3）标配卡爪；可选卡爪：工字钢和槽钢卡爪；
（4）卡爪夹持范围：
推荐齿轮
从动齿轮：RY370-10-0170 从动齿轮 (Mn3Z120)
主动齿轮：RY370-10-0180 主动齿轮 (Mn3Z40)，主动齿轮可定制。
u 推荐减速机及电机功率
推荐减速机：信宝 VRT-140，减速机速比：16
推荐电机功率：2.9KW
结构特点：
1. 一体式全封闭斜齿轮传动结构：防尘性能更强，运行更平稳，使用寿命更长，用户体验更佳；
2. 全系列通用安装尺寸：RY130、RY160、RY220系列后卡盘尺寸通用，节省每个用户的床身管理成本；
3. 精磨卡盘整体：卡盘整体作为安装定位基准面，方便用户安装调试；
4. 内藏式前置气缸传动结构：气缸直接推动，夹紧力随气压变化稳定可靠，为高承载性能提供基础；
5. 卡爪全密封设计：RY130、RY160、RY220系列筒式后卡盘采用独特的全密封卡爪设计，降低了卡死的可能性，减少了人工维护的需求。

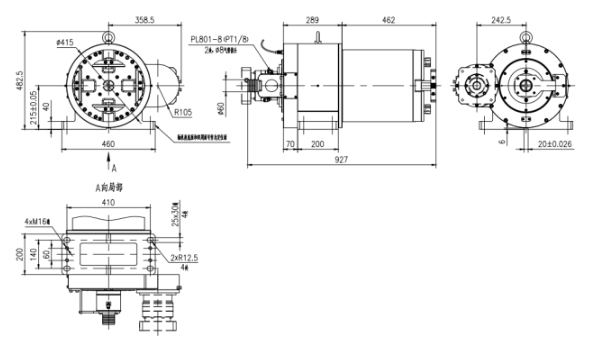

产品型号
产品参数
| Specification | Outer Diameter( mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ 415 | 215±0.05 | 380 | 48000 | ≤0.15 | ≤0.15 | |
| RY350-10-0000 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | IP Grade |
| 42 | 4.5±10% | 20-355 | 0.3-0.9 | 150 | / |
| Appropriative jaws can be customized according to pipe fittings | |
| Selection criteria | GB / T3094-2000 Cold drawn special-shaped steel pipe GB / T706-2008 Hot-rolled Steel GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation |
| Chuck model | RY350 rear chuck |
| Clamp range | The first jaw: The first position of inner clamp:20-95mm, second position: 70-145mm; The second jaw: The first position of inner clamp:140-215mm, second position:190-265mm; The first position of outer support : 230-300mm, second position: 280-355mm; I-beam and channel steel jaws: first position:165-240mm，second position:215-295mm. (specification within the allowable load-bearing range) |
Jaw length | The first jaw length: short jaw 135mm, long jaw 300mm; The second clamp jaw length: inner clamp 160mm, outer support 25mm; I-steel channel jaw 48mm. |
| Round tube | Clamping 20-265mm (the second clamping position:140-265mm), the external support:230-355mm; individual specifications needs to customize appropriative jaws.) |
| Square tube | The maximum size of the square tube is 140 x140 mm by the first jaw, the maximum size of the square tube is 250 x 250mm by the second jaw; the other specifications need customized special jaws; |
| Rectangular tube | The minimum length of the short side is 20mm, and the maximum length of the long side is 250mm for rectangular tube(The maximum value is 250x200mm); other specifications need to customize appropriative jaws; |
| Oval Tube/Flat Oval Tube | The minimum length of the short axis is 20mm, and the maximum length of the long axis is 250mm for oval tube; other specifications need to customize appropriative jaws; |
| I-beam | Using I-beam channel steel jaws can hold up to No. 28 gauge I-beam; |
| Channel steel | sing I-beam channel steel jaws can hold up to No. 28 channel steel |
| Equilateral angle steel | The first jaw can hold up to No. 12.5; The second jaw can hold up to No. 14; other specifications need to customize appropriative jaws; |
| Unequal angle steel | The first jaw can hold up to No. 12.5/8; The second jaw can hold up to: No.20/12.5.; other specifications need to customize appropriative jaws; |
