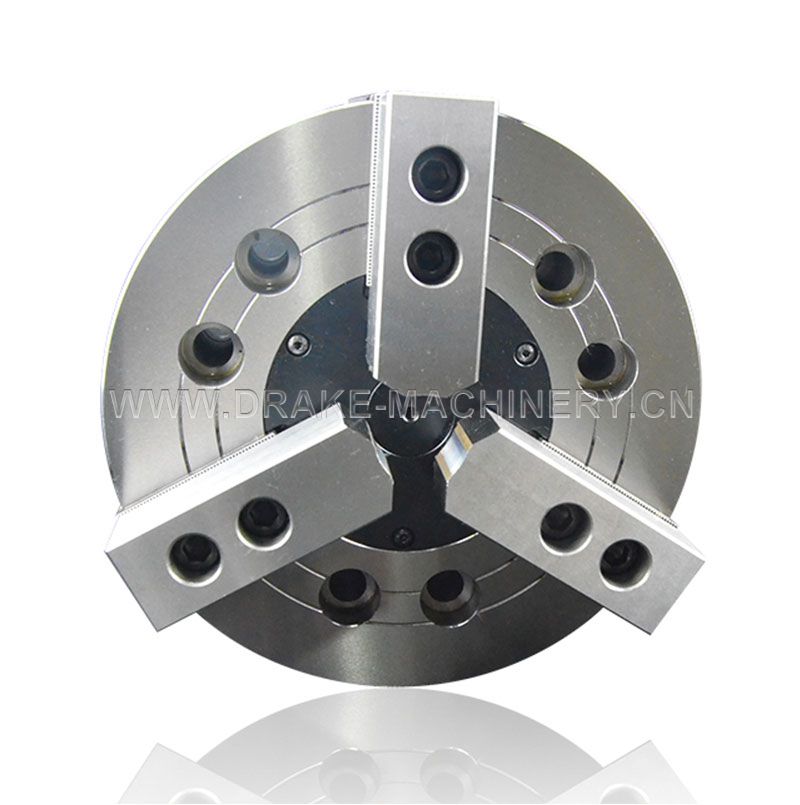

Product Feature:
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
With flange connection, A connection.
产品型号
产品参数
| Performance parameters | ||||||||||
| MODEL/SPEC. | Nose Of Spindle | Plunger Stroke (mm) | Jaw Stroke (Diameter)(mm) | Max.Speed (r.p.m) | Max.Pull Force (kgf) | Max.Gripping Force (kgf) | Max.Hydr. Pressure (kgf/cm²) | Net weight (kg) | Matching Cylinder | Gripping Range |
| YS3-05" | A24 | 15 | 5.4 | 5500 | 800 | 2450 | 22 | 6 | SH80 | Φ8~Φ135 |
| YS3-06'' | A25 | 20 | 5.5 | 5000 | 1730 | 5200 | 27 | 11.4 | SH100 | Φ18~Φ165 |
| YS3-08" | A26(A25) | 21 | 7.4 | 4600 | 2440 | 7440 | 25 | 21.9 | SH125 | Φ26~Φ210 |
| YS3-10" | A28(A26) | 25 | 8.8 | 4000 | 2850 | 10810 | 29 | 33.4 | SH150 | Φ26~Φ254 |
| YS3-12" | A28(A26) | 30 | 10.5 | 3200 | 4080 | 15500 | 29 | 58.5 | SH200 | Φ26~Φ304 |
| YS3-15" | A211 | 35 | 16 | 2800 | 8260 | 25290 | 32.5 | 100.6 | SH200 | Φ68~Φ381 |
| YS3-18" | A211(A28) | 35 | 16 | 2500 | 8260 | 25290 | 32.5 | 134.3 | SH200 | Φ130~Φ450 |

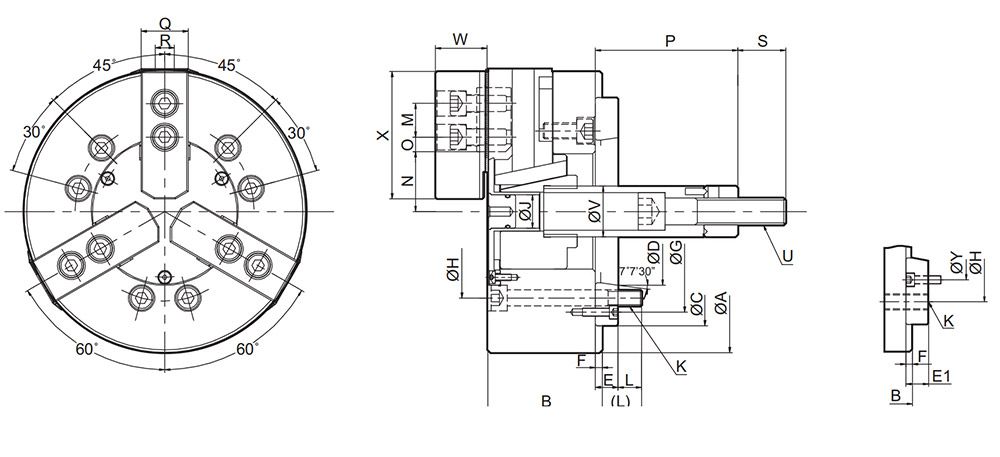

| Size parameter | |||||||||||||||||||||||||||
| MODEL/SPEC. | A | B | C (h6) | D | E | E1 | F | G | H | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | U | V | W | X | Y |
| YS3-05" | 135 | 55 | 80 | 63.513 | / | / | 7 | / | 100 | / | 3-M8×1.25P | 14 | 14 | 30.4 | 27.2 | 17 | 7 | 9 | -6 | 25 | 10 | 35 | M12×1.75P | 28 | 31 | 62 | / |
| YS3-06" | 165 | 74 | 140 | 82.563 | 15 | / | 5 | 116 | 104.8 | 21 | 6-M10×1.5P | 14 | 20 | 37.8 | 33.25 | 18 | 7.5 | 101.5 | 81.5 | 31 | 12 | 36 | M16×2P | 34 | 39 | 73 | / |
| YS3-08" | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 25 | 6-M12×1.75P | 18 | 25 | 46.3 | 41.9 | 22.5 | 9 | 127 | 106 | 35 | 14 | 36 | M20×2.5P | 38 | 42 | 95 | 104.8 |
| YS3-10" | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 | 6-M16×2P | 25 | 30 | 51.4 | 47 | 37.5 | 10.5 | 158 | 133 | 40 | 16 | 36 | M20×2.5P | 45 | 46 | 110 | 133.4 |
| YS3-12'' | 304 | 106 | 220 | 139.719 | 18 | / | 6 | 190 | 171.4 | 34 | 6-M16×2P | 25 | 30 | 60.7 | 55.45 | 47 | 11 | 163 | 133 | 50 | 18 | 36 | M20×2.5P | 50 | 54 | 130 | / |
| YS3-15" | 381 | 114 | 300 | 196.869 | 22 | / | 6 | 260 | 235 | / | 6-M20×2.5P | 32 | 43 | 77.5 | 69.5 | 50.25 | 23.25 | 104 | 69 | 62 | 25.5 | 55 | M30×3.5P | 60 | 63 | 165 | / |
| YS3-18'' | 450 | 114 | 300 | 196.869 | 22 | / | 6 | 260 | 235 | / | 6-M20×2.5P | 32 | 43 | 108 | 100 | 49.5 | 25.5 | 92 | 57 | 62 | 25.5 | 55 | M30×3.5P | 60 | 63 | 165 | / |
