产品详情
端面夹持，防止工件变形，适合薄壁工件加工。2.夹持补偿机构，可良好夹持不规则表面工件。
产品型号
产品参数
| Model | Rotating Stroke (mm) | Claming Stroke(mm) | Jaw stroke(mm) | Clamping diameter(mm) | Max.D.B.pull kN(kgf) | Max.Clamping force kN(kgf) | Max.speed r.p.m | Moment of inertia mm | Weight kg | Matching cylinder | Max.pressure Mpa(kgf/cm²) | |
| max | min | |||||||||||
| 3J-05 | 12 | 8 | 2 | 53 | 25 | 7.5(765) | 6.0(612) | 4000 | 0.02 | 11 | SH-100 | 1.0(10) |
| 3J-06 | 12 | 8 | 2 | 79 | 55 | 9.0(918) | 7.5(765) | 4000 | 0.04 | 12 | SH-100 | 1.2(12) |
| 3J-08 | 12 | 8 | 2 | 106 | 75 | 18.0(1835) | 16.5(1680) | 3500 | 0.13 | 23 | SH-100 | 2.5(25) |
| 3J-10 | 12 | 8 | 2.5 | 150 | 119 | 18.0(1835) | 16.5(1680) | 3500 | 0.3 | 33 | SH-100 | 2.5(25) |
| 3J-12 | 12 | 8 | 2.5 | 200 | 169 | 18.0(1835) | 16.5(1680) | 3000 | 0.56 | 44 | SH-100 | 2.5(25) |

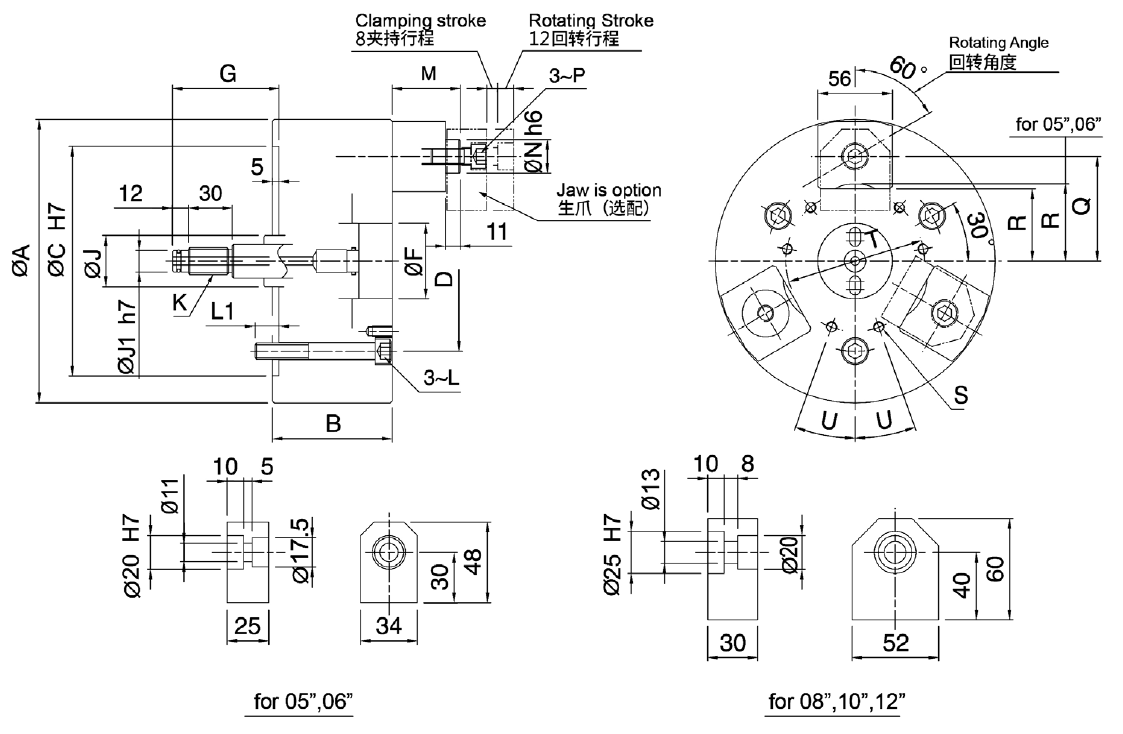

| Model /Spec | A | B | C(H6) | D | F | G max | G min | J | J1 | k | L | L1 | M max | M min | N | P | Q | R | S | T | U |
| 3J-05 | 135 | 86 | 110 | 82.6 | 40 | 75 | 55 | 25 | 9 | M12x1.75 | M10 | 15 | 56 | 36 | 20 | M10 | 42.5 | 27 | 3-M6 | 50 | - |
| 3J-06 | 165 | 86 | 140 | 104.8 | 45 | 75 | 55 | 28 | 12 | M16x2 | M10 | 15 | 56 | 36 | 20 | M10 | 57.5 | 40 | 3-M8 | 64 | - |
| 3J-08 | 210 | 90 | 170 | 133.4 | 56 | 80 | 60 | 38 | 16 | M20x2.5 | M12 | 18 | 71 | 51 | 25 | M12 | 77.5 | 53.5 | 6-M8 | 104 | 20° |
| 3J-10 | 254 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20x2.5 | M16 | 24 | 71 | 51 | 25 | M12 | 99.5 | 75.5 | 6-M8 | 140 | 20° |
| 3J-12 | 304 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20x2.5 | M16 | 24 | 71 | 51 | 25 | M12 | 124.5 | 100.5 | 6-M8 | 190 | 20° |
