产品详情
一次装夹即可进行多面加工；2.机械主轴在旋转过程中还可自动变换角度；3.可分度3X120、4X90、6X60、8X45等常规等角度；4.含有到位检测信号，确保分度未到位时的安全。
产品型号
产品参数
| Model | Max.Clamping force kN(kgf) | Spindle hole (mm) | r.p.m (mm) | Weight kg | Matching cylinder | Max.pressure Mpa(kgf/cm²) | S(mm) | L(mm) | K(mm) |
| SGA-168 | 813 | >52 | 2800 | 16 | JR250 | 4.0(40) | 40 | 120 | 140 |
| SGA-185 | 813 | >52 | 3000 | 19 | JR250 | 4.0(40) | 45 | 140 | 145 |
| SGA-225 | 1270 | >52 | 2500 | 26 | JR250 | 4.0(40) | 65 | 160 | 165 |
| SGA-280 | 2550 | >60 | 2200 | 55 | JR500 | 4.0(41) | 80 | 220 | 250 |
| SGA-315 | 2550 | >60 | 1800 | 71 | JR500 | 4.0(42) | 110 | 250 | 260 |
| SGA-350 | 2550 | >60 | 1600 | 91 | JR500 | 4.0(43) | 135 | 280 | 270 |
| SGA-400 | 2550 | >60 | 1400 | 145 | JR500 | 4.0(44) | 170 | 320 | 2180 |

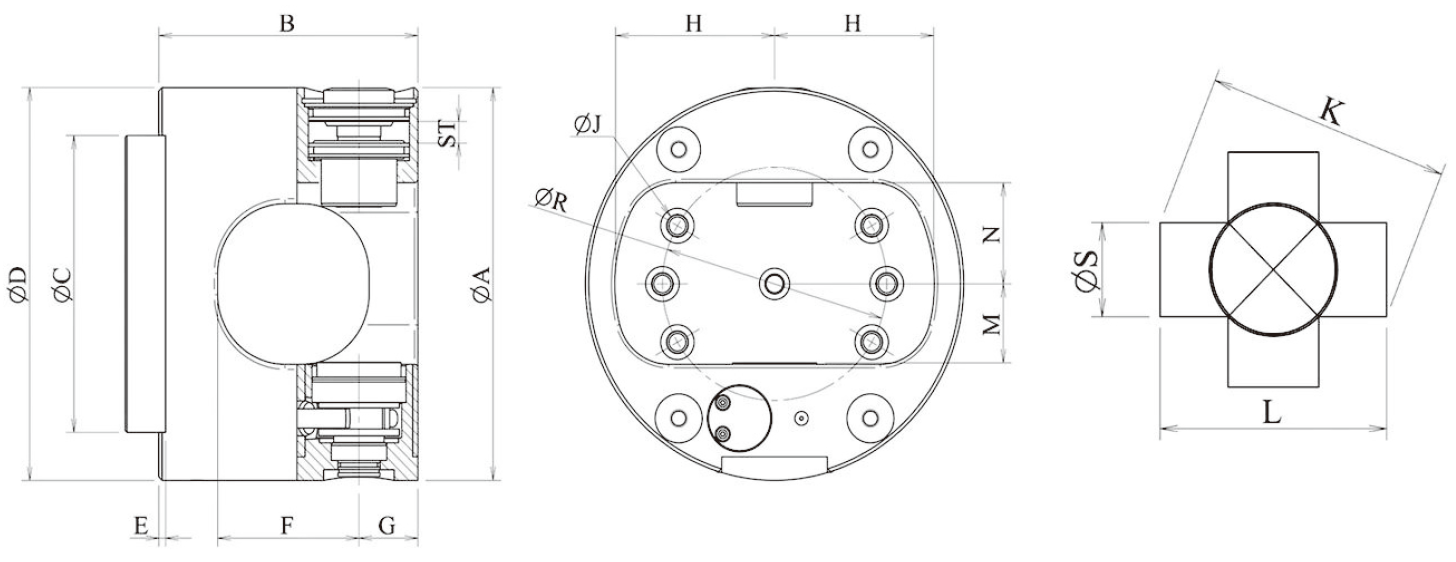

| Model | A | B | C(H6) | D | E | F | G | H | J | M | N | ST | R |
| SGA-168 | 168 | 140 | 140 | 178 | 5 | 72 | 30 | 68 | M10 | 34 | 38 | 9.5 | 104.8 |
| SGA-185 | 185 | 143 | 140 | 198 | 5 | 75 | 30 | 77 | M10 | 32 | 42 | 10.5 | 104.8 |
| SGA-225 | 225 | 154 | 170 | 225 | 5 | 84 | 35 | 95 | M12 | 46 | 58 | 11.5 | 133.4 |
| SGA-280 | 280 | 213 | 220 | 280 | 5 | 126 | 48 | 125 | M16 | 57 | 67 | 16.8 | 171.4 |
| SGA-315 | 315 | 232 | 220 | 315 | 5 | 136 | 50 | 136 | M16 | 76 | 85 | 19.4 | 171.4 |
| SGA-350 | 350 | 240 | 300 | 350 | 6 | 136 | 50 | 145 | M20 | 84 | 102 | 19.4 | 235 |
| SGA-400 | 400 | 259 | 300 | 400 | 6 | 140 | 60 | 165 | M20 | 100 | 114 | 30 | 235 |
