产品详情

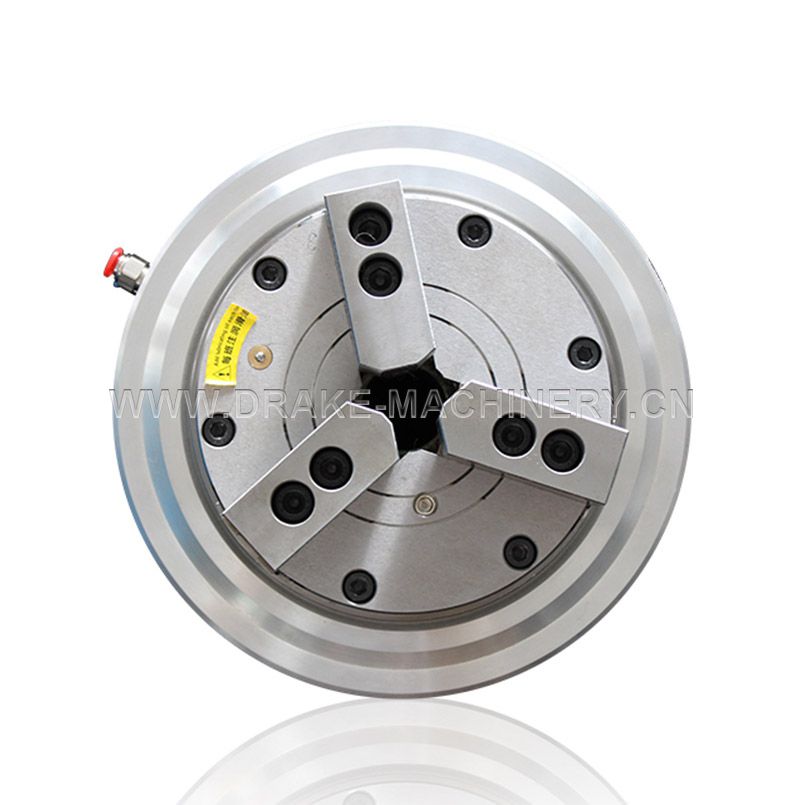

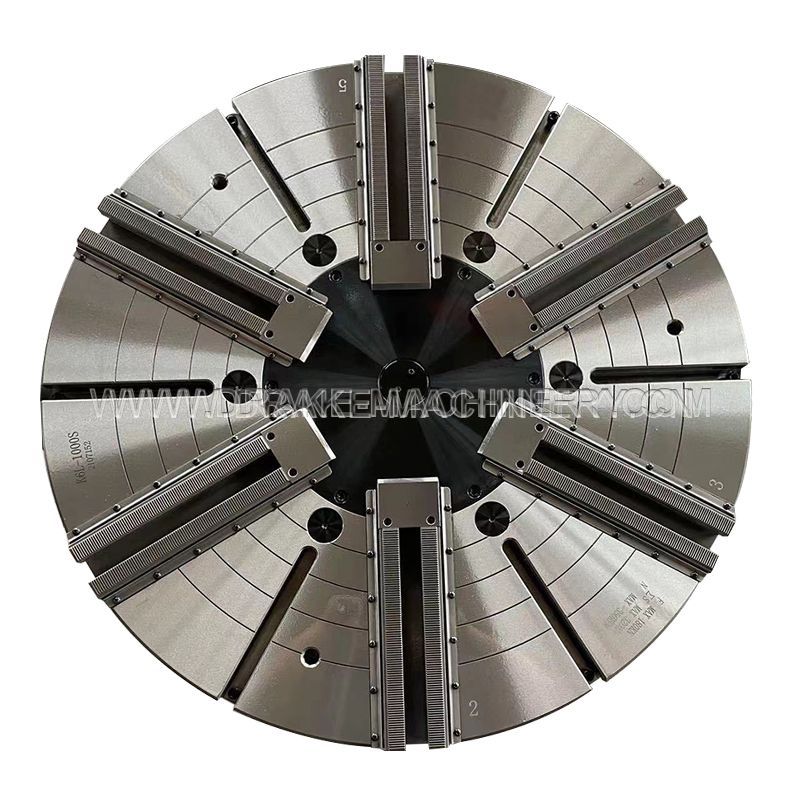

立卧式车床通用型固体防水卡盘适用于立式车床和卧式车床。卡盘体端面设有密封圈，可防止铁屑和切削水进入卡盘，延长卡盘使用寿命。卡盘采用六爪设计。法兰也设有密封圈，可防止切削水进入机床主轴，并可根据需求配备各种类型的法兰。
产品型号
产品参数
| Model/Spec. | Wedge sleeve travel（mm) | Jaw Stroke（Diameter)(mm） | Max.Pull Force（kgf） | Max.Gripping Force（kgf） | Max.Speed（r.p.m) | Matching Cylinder |
| V3-12/A8 | 26 | 11 | 50 | 120 | 3300 | SH150 |
| V3-15/A8 | 35 | 16 | 80 | 200 | 2800 | SH150 |
| V3-15/A11 | 35 | 16 | 80 | 200 | 2800 | SH200 |
| V3-18/A8 | 35 | 16 | 80 | 200 | 2500 | SH200 |
| V3-18/A11 | 35 | 16 | 80 | 200 | 2500 | SH200 |
| V3-21/A11 | 33 | 17.6 | 90 | 225 | 1200 | SH200 |
| V3-24/A11 | 38 | 20.3 | 90 | 225 | 100 | SH250 |

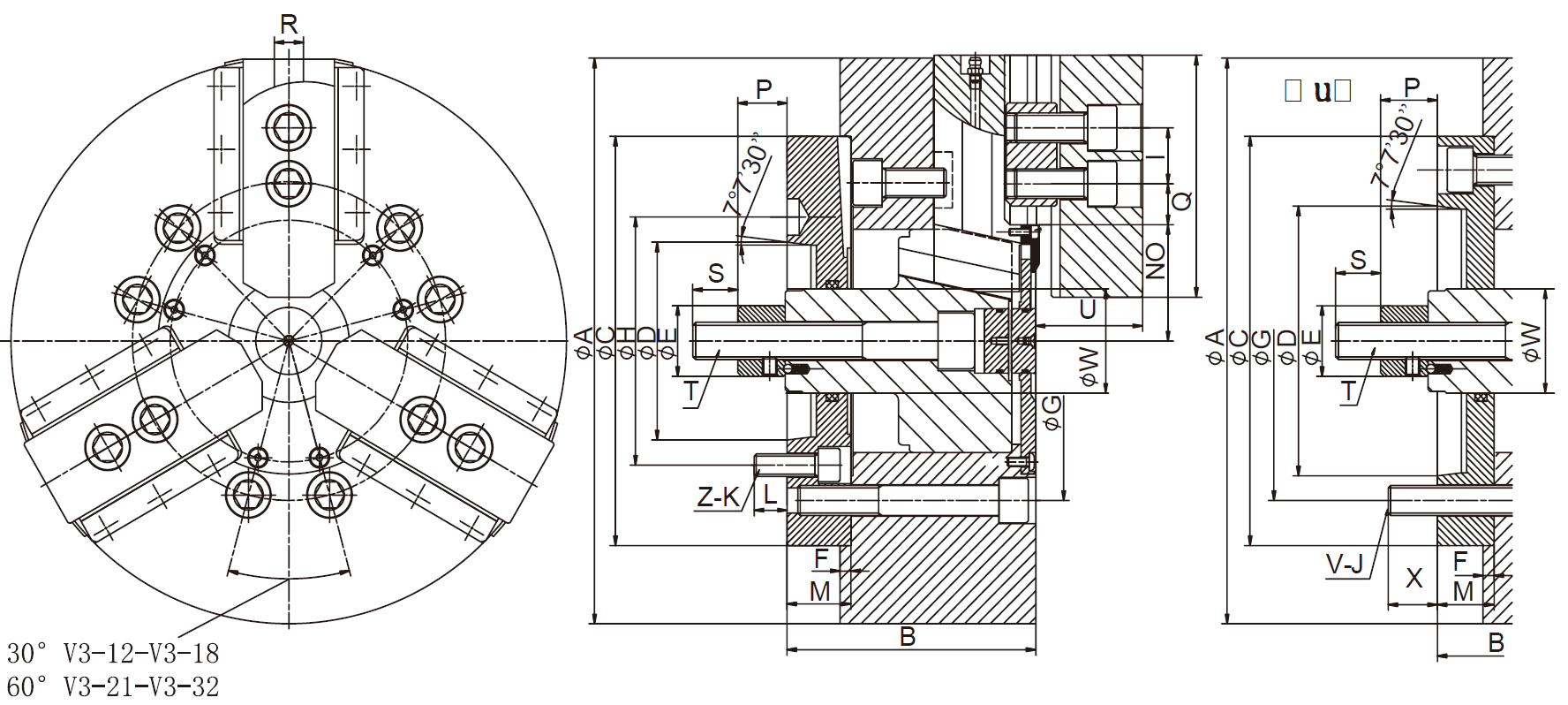

| Model/Spec. | A | B | C | D | E | F | G | H | I | J | Z-K | L |
| V3-12/A8 | 304 | 138 | 220 | 139.719 | 50 | 6 | 171.45 | - | 30 | 6-M16 | 6-M16 | 24 |
| V3-15/A8 | 381 | 160 | 300 | 139.719 | 60 | 6 | 171.45 | 171.4 | 43 | 6-M20 | 6-M16 | 24 |
| V3-15/A11 | 381 | 160 | 300 | 196.869 | 60 | 6 | 235 | - | 43 | 6-M20 | - | 32 |
| V3-18/A8 | 450 | 160 | 300 | 139.719 | 60 | 6 | 171.45 | 171.4 | 43 | 6-M20 | 6-M16 | 24 |
| V3-18/A11 | 450 | 160 | 300 | 196.869 | 60 | 6 | 235 | - | 43 | 6-M20 | - | 32 |
| V3-21/A11 | 530 | 178 | 380 | 196.869 | 60 | 6 | 235 | 235 | 60 | 6-M24 | 6-M20 | 30 |
| V3-24/A11 | 610 | 173 | 380 | 196.869 | 60 | 6 | 235 | 235 | 60 | 6-M24 | 6-M20 | 30 |
| Model/Spec. | M | N | O | P | Q | R | S | T | U | W | X | Comb Teeth | |||
| MAX. | MIX. | MAX. | MIX. | MAX. | MIX. | ||||||||||
| V3-12/A8 | 33 | 64 | 56 | 45.75 | 12.75 | 145 | 115 | 130 | 18 | 36 | M20×2.5 | 54.5 | 50 | 24 | 1.5*60° |
| V3-15/A8 | 33 | 78 | 68.65 | 49.75 | 24.25 | 71 | 36 | 165 | 25.5 | 55 | M30×3.5 | 66.5 | 60 | 24 | 1.5*60° |
| V3-15/A11 | 33 | 78 | 68.65 | 49.75 | 24.25 | 82 | 47 | 165 | 25.2 | 55 | M30×3.5 | 66.5 | 60 | 32 | 1.5*60° |
| V3-18/A8 | 33 | 92 | 82.65 | 70.75 | 24.25 | 59 | 24 | 165 | 25.2 | 55 | M30×3.5 | 66.5 | 60 | 24 | 1.5*60° |
| V3-18/A11 | 33 | 92 | 82.65 | 70.75 | 24.25 | 70 | 35 | 165 | 25.5 | 55 | M30×3.5 | 66.5 | 60 | 32 | 3.0*60° |
| V3-21/A11 | 33 | 87 | 79 | 93.5 | 27.5 | 70 | 35 | 180 | 25 | 55 | M30×3.5 | 77 | 60 | 30 | 3.0*60° |
| V3-24/A11 | 52 | 126.5 | 118.5 | 93.5 | 27.5 | 70 | 35 | 180 | 25 | 55 | M30×3.5 | 77 | 60 | 30 | 3.0*60° |
| V3-32/A11 | 52 | 104.8 | 95.45 | 196.5 | 25.5 | 47 | 12 | 210 | 25 | 55 | M30×3.5 | 93 | 60 | 30 | 3.0*60° |
