产品详情
带硬化钢段的分段夹紧心轴特别适合夹紧具有内部几何形状的工件。主要应用包括车削、磨削、铣削、刀具切割、平衡、定位、钻孔等。
产品型号
产品参数

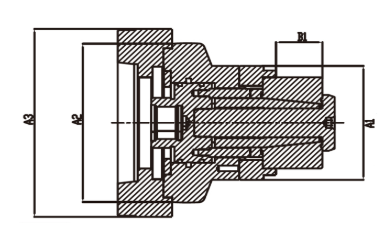

| Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | B1 |
| T211-0 | 20-28 | 100 | 6000 | 65 | 106 | Change with different connection flanges | 144-165 | 22 |
| T211-1 | 26-38 | 110 | 6000 | 69 | 106 | 144-165 | 26 | |
| T211-2 | 36-54 | 140 | 6000 | 93 | 131 | 160-210 | 43 | |
| T211-3 | 50-80 | 150 | 5500 | 96 | 139 | 160-210 | 49 | |
| T211-4 | 69-100 | 150 | 5500 | 120 | 139 | 160-210 | 59 | |
| T211-5 | 100-130 | 150 | 4500 | 145 | 230 | 160-210 | 76 | |
| T211-6 | 130-160 | 150 | 3500 | 180 | 230 | 179-280 | 84 | |
| T211-7 | 160-200 | 150 | 3500 | 230 | 248 | 235-280 | 89 |
