Product Features:

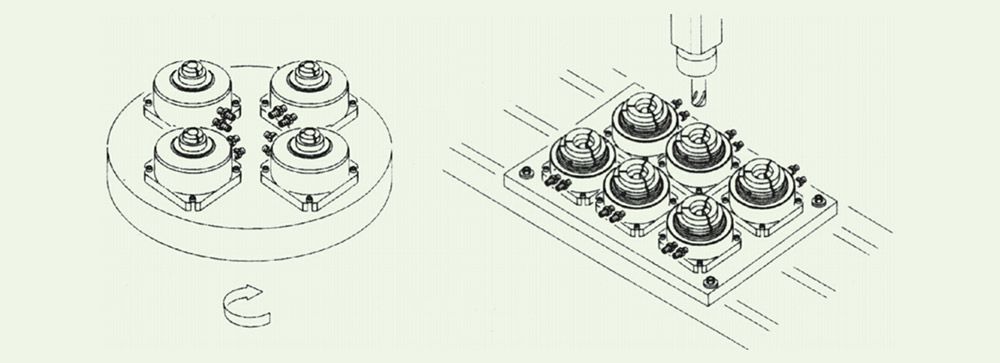

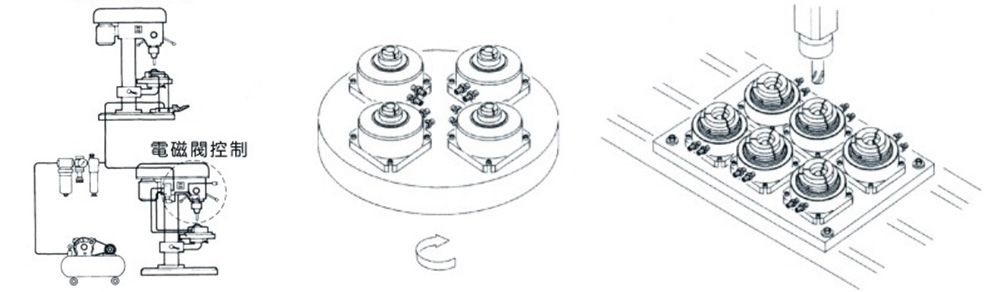

Suitable for drilling machines, tapping machines, iron beds, central processing machines, disc multi-station processing machines.

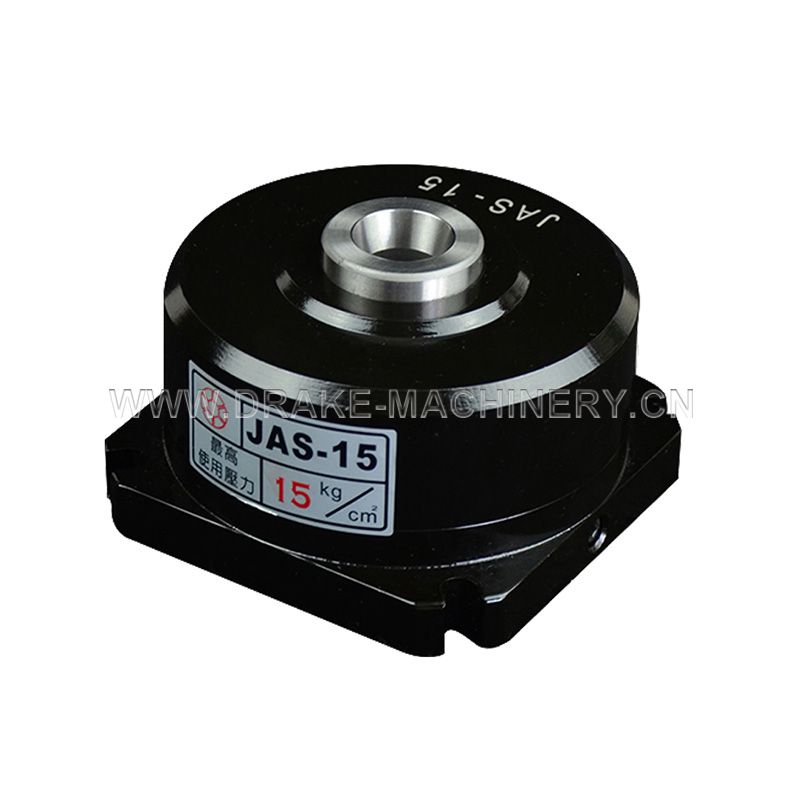

The JAS-15 uses the YB-15 collet and the JAS-25 uses the YB-25 collet (the two air hydraulics are common).
It is more convenient to use the interchangeable auxiliary claws and save the cost of the collet caused by product changes.
产品型号
产品参数
| Performace Parameters | |||||||
| Model/Spec. | Power source | Working pressure (kg/cm²) | Clamping torque | Max.chuck diameter | Through-hole aperture | Adapter fixture | Net weight (kg) |
| JAS-15" | Air/Oil pressure | 3~15kg | 5N.m | ∮16 | ∮14 | YB-15 | 5 |
| JAS-25" | Air/Oil pressure | 3~15kg | 15N.m | ∮28 | ∮24 | YB-25 | 9 |
| JAS-40" | Air compressor | 3~8kg | 30N.m | ∮50 | ∮39 | C-40 | 12.2 |

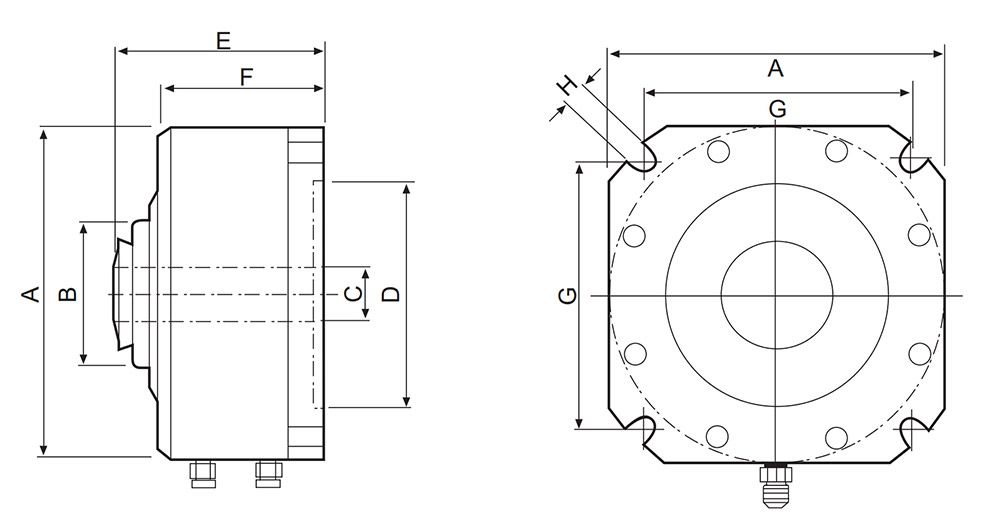

| Size parameters | ||||||||
| Model/Spec. | A | B | C | D | E | F | G | H |
| JAS-15" | 118 | 40 | 14 | 90 | 76 | 64 | 98.3 | 9 |
| JAS-25" | 144 | 60 | 26 | 100 | 108 | 75 | 115.3 | 9 |
| JAS-40" | 168 | 110 | 40 | 100 | 98 | 77 | 136.5 | 11 |
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.
★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
