产品详情
带硬化钢段的分段夹紧主轴特别适合夹紧具有内部几何形状的工件。主要应用包括车削、去料、铣削、刀具切割、平衡、定位、钻孔等。
产品型号
产品参数

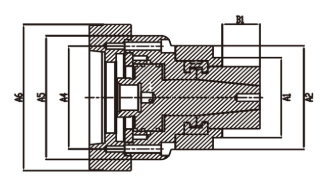

| Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | A5 | B1 |
| T812-XXS | 8-13 | 60 | 6000 | 41 | 65 | 106 | Change with different connection flanges | 145 | 8 |
| T812-XS | 13-19 | 70 | 6000 | 42 | 65 | 106 | 144-165 | 14 | |
| T812-S | 16-21 | 85 | 6000 | 45 | 70 | 106 | 144-165 | 15 | |
| T812-0 | 20-28 | 100 | 6000 | 54 | 90 | 139 | 144-165 | 21 | |
| T812-1 | 26-38 | 110 | 6000 | 62 | 90 | 139 | 144-165 | 25 | |
| T812-2 | 36-54 | 140 | 6000 | 76 | 104 | 139 | 160-210 | 40 | |
| T812-3 | 50-80 | 150 | 5500 | 105 | 120 | 139 | 160-210 | 44.5 | |
| T812-4 | 69-100 | 150 | 5500 | 124 | 138 | 143 | 160-210 | 52.5 | |
| T812-5 | 100-130 | 150 | 4500 | 160 | 195 | 230 | 160-210 | 48 | |
| T812-6 | 130-160 | 150 | 3500 | 184 | 226 | 230 | 179-280 | 56 | |
| T812-7 | 160-200 | 150 | 3500 | 226 | 276 | 260 | 235-280 | 65 |
