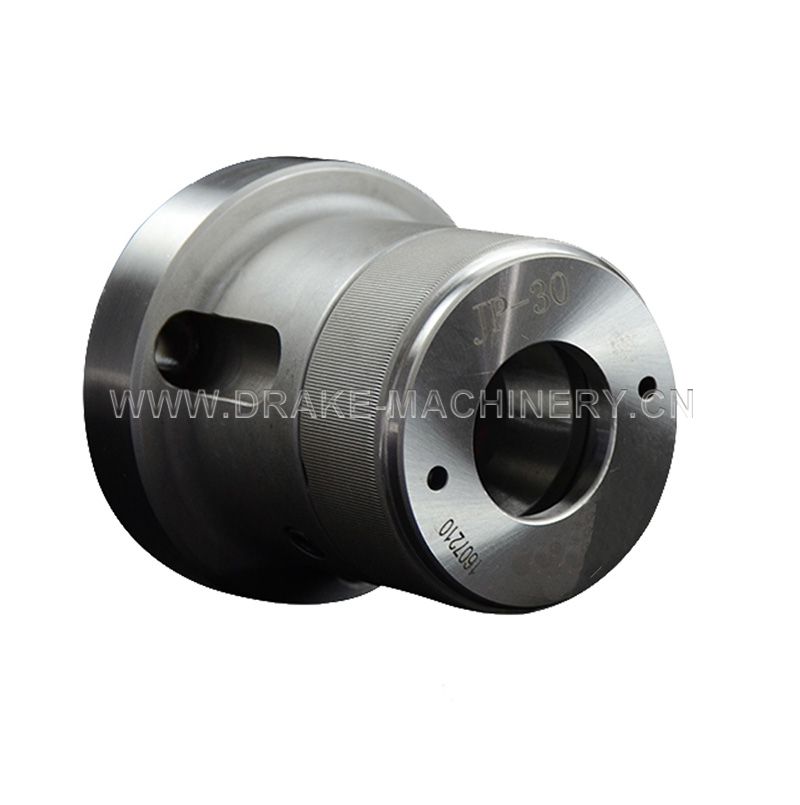

Product Features:
All steel design.
Adapt to the standard spindle nose.
It is convenient to install the collet and the rear rotary cylinder is moved.
Easy to install, higher precision and easier operation.
The push-on collet does not shift, ensuring the size of the workpiece barrel.
产品型号
产品参数

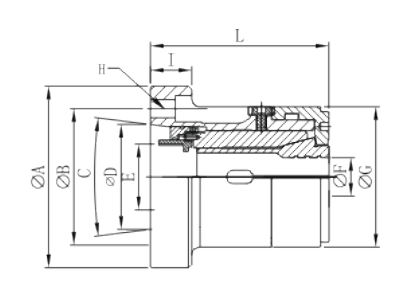

| Model/Spec. | JP30 | JP42 | JP60 | JP80 | |||
| Installation form | A4 | Straight type | A5 | Straight type | A6 | Straight type | A8 |
| A | 110 | 120 | 155 | 155 | 170 | 185 | 220 |
| B | 82.6 | 82.6 | 104.8 | 104.8 | 133.4 | 133.4 | 171.4 |
| C | 14.25 | 0 | 14.25 | 0 | 14.25 | 0 | 14.25 |
| D | 63.513 | 110 | 82.563 | 140 | 106.375 | 170 | 139.7 |
| E | M40*2 | M40*2 | M55*1.5 | M55*1.5 | M75*2 | M75*2 | M114.2 |
| F(Max) | 30 | 30 | 42 | 42 | 60 | 60 | 80 |
| G | 85 | 85 | 100 | 100 | 130 | 130 | 176.4 |
| H | 3-M10 | 3-M10 | 4-M10 | 3-M10 | 4-M12 | 4-M12 | 4-M16 |
| I | 25 | 23 | 28 | 23 | 27 | 27 | 35 |
| L | 108 | 100 | 127 | 120.8 | 154 | 154 | 156 |
| Matching collet | 163E | 163E | 173E | 173E | 185E | 185E | 193E |
| Maximum speed（rpm/min) | 7000 | 7000 | 6000 | 6000 | 5000 | 5000 | 4000 |
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.
★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
