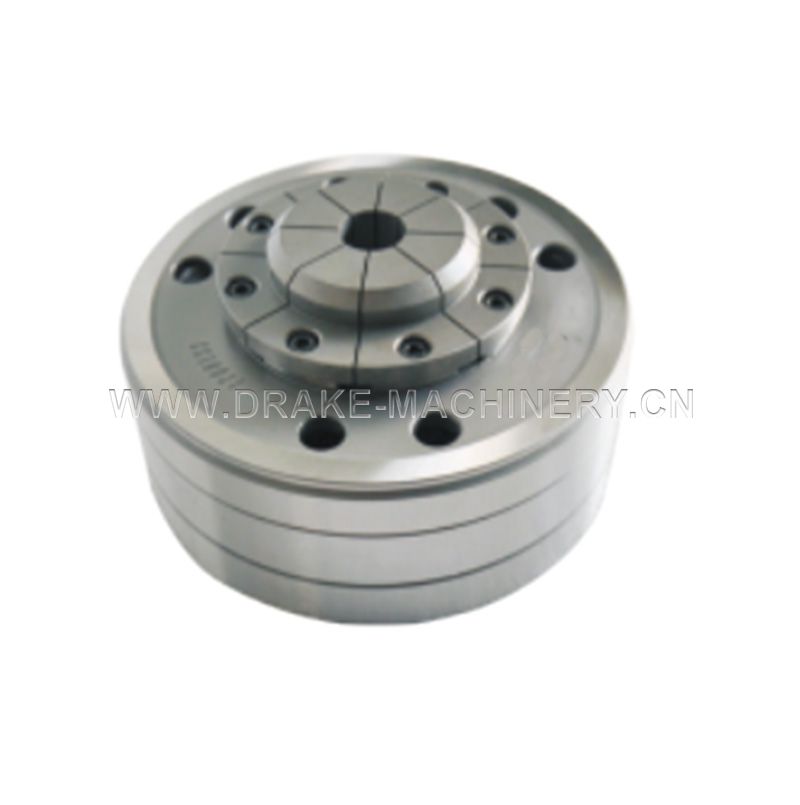

Product Features:
Using the diaphragm elastic technology, the vehicle has a precision of 3μ or less and a clamping accuracy of 2μ.
Permanent precision life.
Highly sealed design, waterproof and dustproof.
Easily control the concentricity and parallelism of both ends.
Multi-stage size can be processed in several stages to reduce equipment costs.
The single-action grinding machine replaces the CNC multi-stage simultaneous processing.
It needs to be equipped with a rear air cylinder pull rod drive.
The three-point combination clamping force can be fine-tuned.
Product Suitability:
Precision machining of miniature bearings, motors and precision sets.
Applicable to micro-electronic products, optical parts, medical parts, light dragon high-precision home parts of the car, butcher processing.
Detection of precision components.
产品型号
产品参数

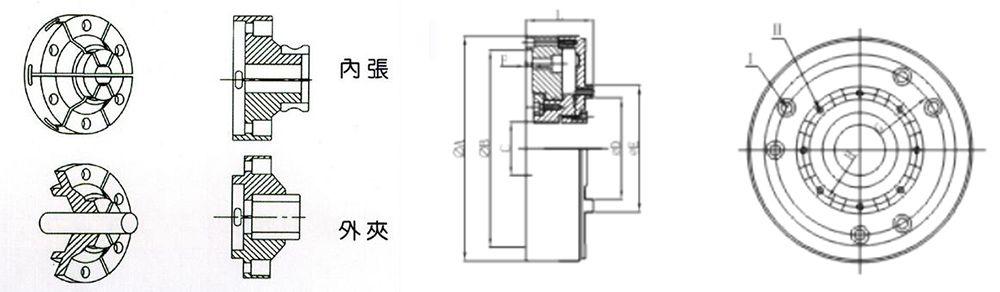

| Size Parameters | ||||||||||||||
| Model/Spec. | A | B | C (H6) | D | E | F | G | H | L | I | II | Working pressure (kg/cm²) | Clamping Stroke (mm) | Matching jaw type |
| JP4-60 | 116 | 72 | M12*1.5 | 45 | 60 | 6 | 100 | 52 | 41 | 6-M5 | 6-M4 | 2~7 | 0.1 | JD-60 |
| JP5-70 | 147 | 125 | M28*1.5 | 50 | 70 | 5 | 106.4 | 60 | 57.2 | 6-M6 | 6-M5 | 2~7 | 0.3 | JD-70 |
| JP6-100 | 177 | 155 | M55*2 | 80 | 100 | 5 | 133.4 | 90 | 53 | 6-M8 | 8-M5 | 2~7 | 0.3 | JD-100 |
| JP8-150 | 220 | 190 | M82*1.5 | 120 | 150 | 5 | 170 | 135 | 56.8 | 8-M8 | 8-M6 | 2~7 | 0.3 | JD-150 |
| ★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements. ★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters! | ||||||||||||||
