产品详情
● 后拉式，适配韩宝格/GT管夹
● 旋转精度≤0.003mm
● 重复夹持精度≤0.015mm
● 最大使用转速：6000rpm/min

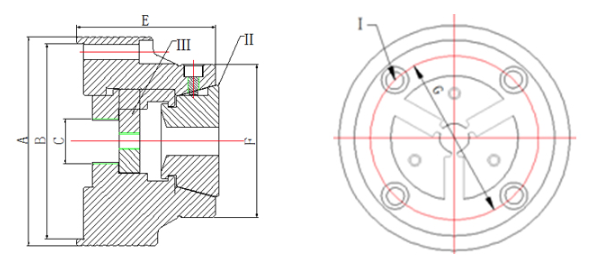

产品型号
产品参数
| Product Model | Product Parameters | |||||||||
| Connection mode | A | B | C | E | F | G | I | Ⅱ | Ⅲ | |
| (Flexible bobbin clamp) | ||||||||||
| JB-HBG32 | Straight Port | φ150 | φ140 | M32*1.5 | 100 | φ110 | φ104.8 | 4-M10 | HAINBUCH 32 | Locating block |
| A2-5 | φ150 | φ82.563 | M32*1.5 | 115 | φ110 | Countersunk head | ||||
| JB-HBG42 | Straight Port | φ150 | φ140 | M32*1.5 | 100 | φ110 | φ104.8 | 4-M10 | HAINBUCH 42 | Locating block |
| A2-5 | φ150 | φ82.563 | M32*1.5 | 115 | φ110 | Countersunk head | ||||
| JB-HBG52 | Straight Port | φ150 | φ140 | M32*1.5 | 100 | φ110 | φ104.8 | 4-M10 | HAINBUCH 52 | Locating block |
| A2-5 | φ150 | φ82.563 | M32*1.5 | 115 | φ110 | Countersunk head | ||||
| JB-HBG65 | Straight Port | φ180 | φ170 | M32*1.5 | 108.5 | φ130 | φ133.4 | 4-M12 | HAINBUCH 65 | Locating block |
| A2-6 | φ180 | φ106.375 | M32*1.5 | 123.5 | φ130 | Countersunk head | ||||
