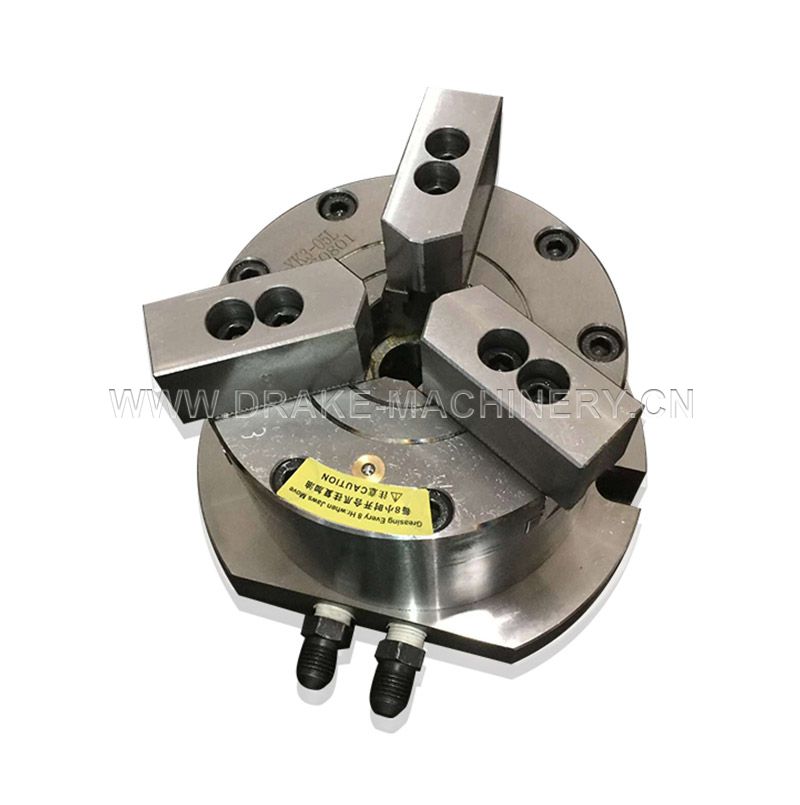

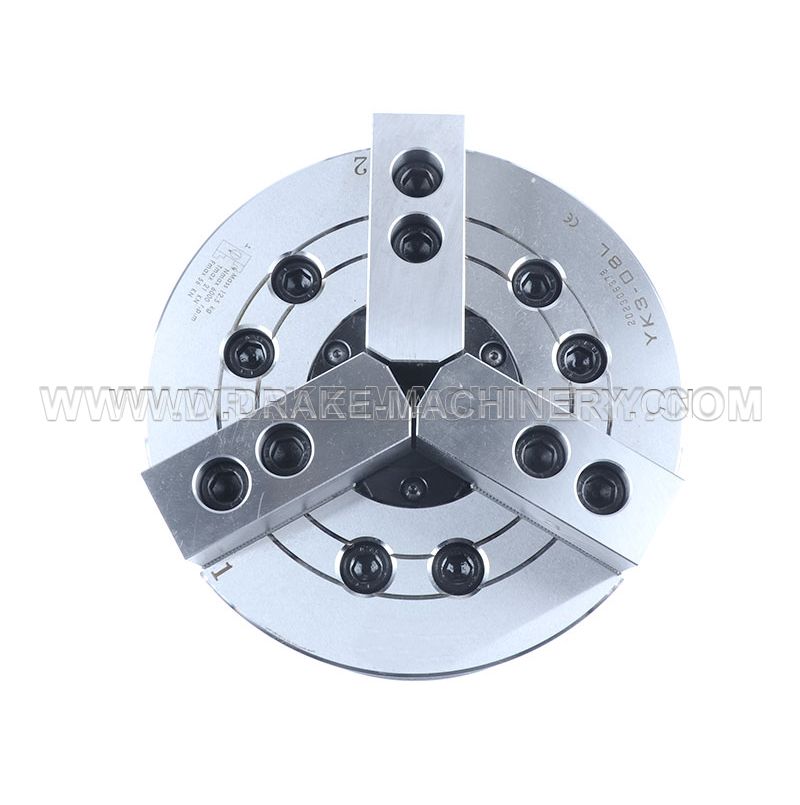

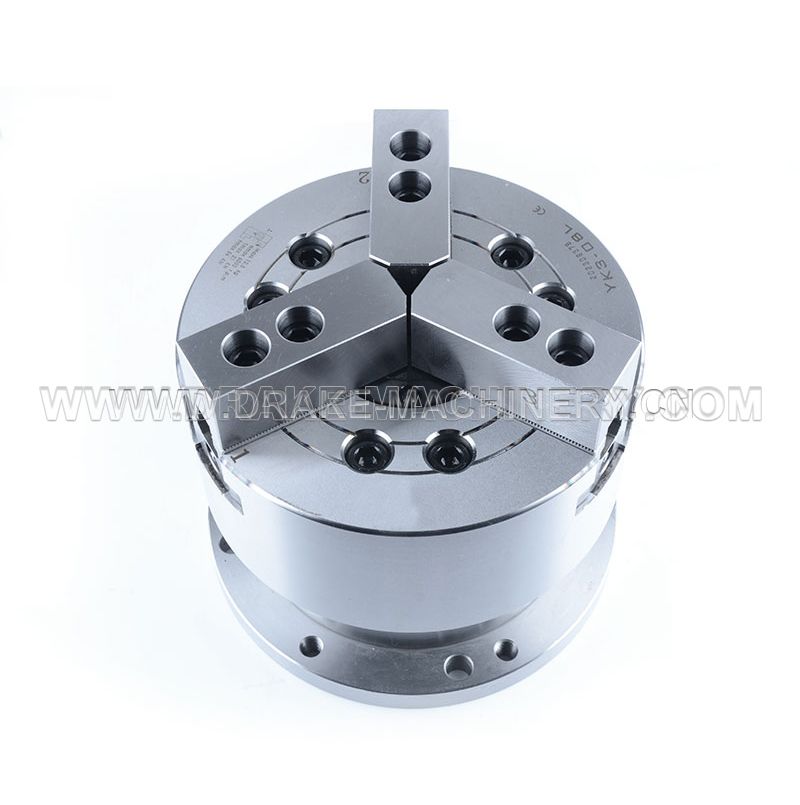

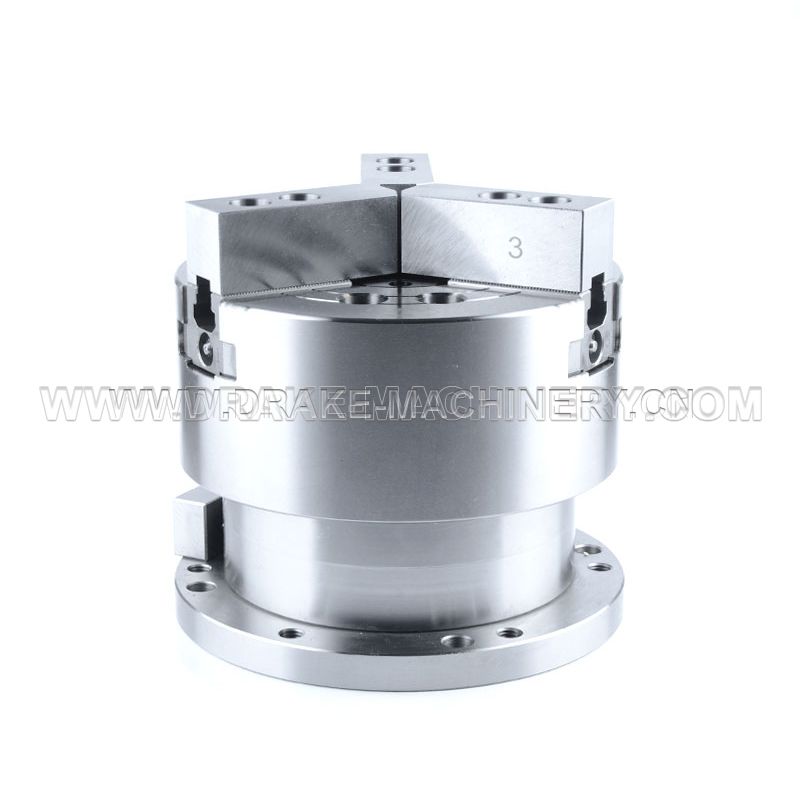

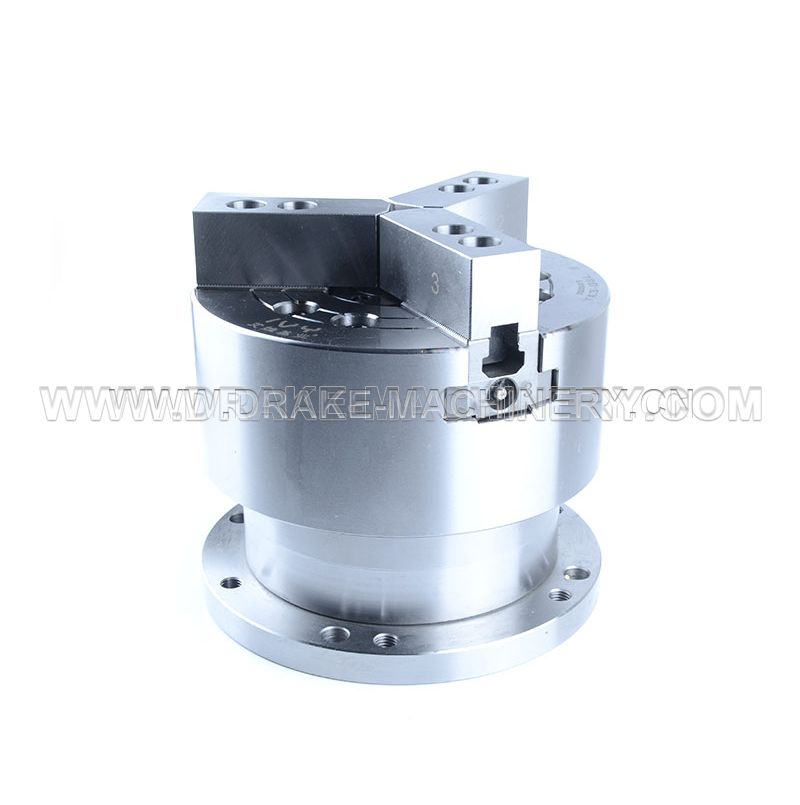

Product Feature:
Patent-product, vertical type with baseboard.
Built-in cylinder structure, convenient for installation.
This chuck is applicable for machining center, driller and miller.
Two-claw and four-claw are available.
产品型号
产品参数
Performance parameters | |||||||
MODEL/SPEC. | Jaw stroke (diameter)(mm) | Maximun static clamping force (Kgf) | Maximum static holding force (Kgf) | Permissible pressure (Mpa) | Clamping range | Holding range | Net weight (kg) |
YK3-04''L | 3.2 | 2440 | 1630 | 0.4-1.5 | 3-115 | 15-120 | 8 |
YK3-05''L | 3.7 | 3060 | 2040 | 0.4-1.5 | 5-130 | 15-140 | 11 |
YK3-06''L | 4.2 | 5300 | 3460 | 0.4-1.5 | 5-170 | 20-180 | 18 |
YK3-08''L | 5 | 8360 | 5100 | 0.4-1.5 | 10-210 | 25-230 | 28 |
YK3-10''L | 6.5 | 11520 | 7140 | 0.4-1.5 | 20-250 | 30-260 | 40 |
YK3-12''L | 8.5 | 13660 | 9990 | 0.4-1.0 | 30-320 | 40-340 | 75 |
YK3-15''L | 12 | 19890 | 13260 | 0.4-1.0 | 40-400 | 60-420 | 120 |

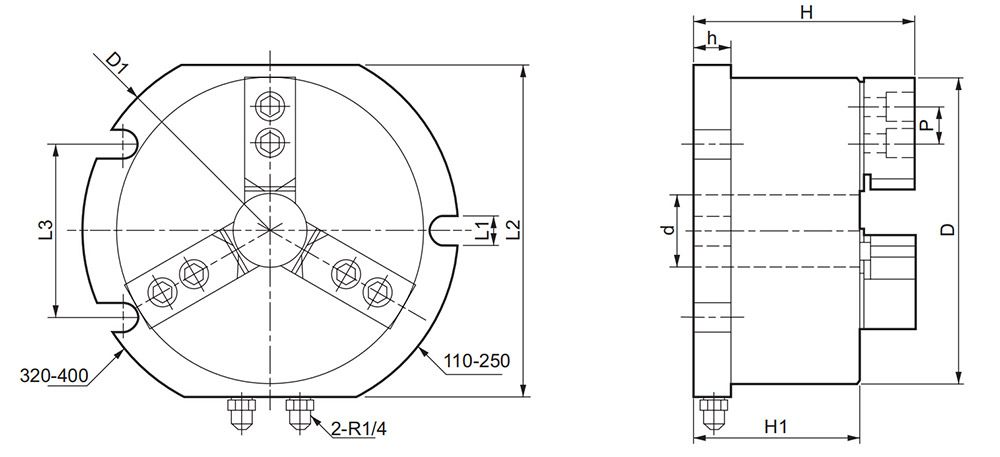

Size parameter | ||||||||||
MODEL/SPEC. | D | D1 | d | L1 | L2 | L3 | H | H1 | h | p |
YK3-04''L | 115 | 165 | / | 2~15 | 120 | / | 116 | 92 | 20 | 14 |
YK3-05''L | 135 | 175 | 20 | 2~15 | 140 | / | 120 | 97 | 26 | 14 |
YK3-06''L | 172 | 218 | 35 | 2~17 | 180 | / | 142 | 109 | 26 | 20 |
YK3-08''L | 208 | 265 | 40 | 2~17 | 220 | / | 155 | 115 | 26 | 25 |
YK3-10''L | 252 | 310 | 60 | 2~20 | 260 | / | 157 | 115 | 26 | 30 |
YK3-12''L | 322 | 400 | 80 | 4~20 | 340 | 150 | 185 | 133 | 30 | 30 |
YK3-15''L | 400 | 480 | 100 | 4~20 | 430 | 150 | 220 | 148 | 35 | 43 |
