Note
● Only in the maximum pressure, the highest speed can be achieved when using the jaw of no more than the weight shown in the table above.
● The processed workpieces and two jaws must be well balanced rotating the axis. If do not meet this condition, or jaw is overweight, the speed must be reduced.
● The workpiece can index when the shaft is rotating. When the workpiece at high speed, to avoid vibration as a result of workpiece’ weight unbalance in the middle position, the speed is proposed to reduce 30-50%.

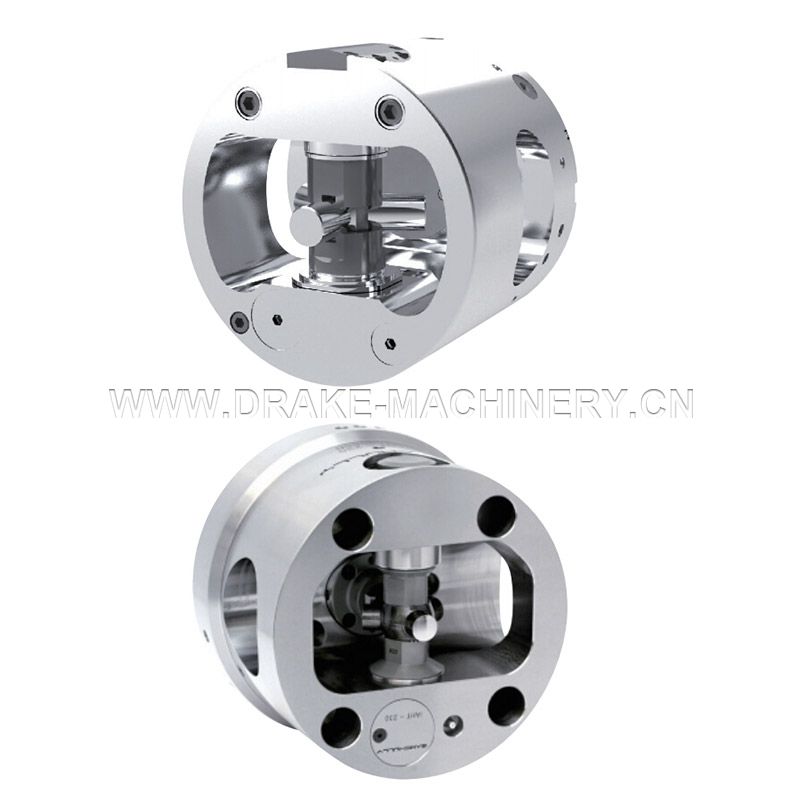

产品型号
产品参数
| Performance Parameters | ||||||||
| Can achieve indexing angle of 4*90°,8*45°,3*120°.6*60°and special angle | ||||||||
| MODEL/SPEC. | The maximum axial loading window G(mm) | Jaw stroke U(mm) | Piston area (cm²) | Maximum pressure (bar) | Maximum speed (r.p.m) | Rotating moment (kg.m²) | Clamping jaw weight (kg) | Body weight (kg) |
| YFD-168'' | 125 | 9 | 13 | 25 | 3000 | 0.12 | 0.5 | 18 |
| YFD-210'' | 175 | 15 | 30 | 35 | 3000 | 0.16 | 0.6 | 24 |
| YFD-235'' | 197 | 15 | 30 | 35 | 2800 | 0.27 | 0.6 | 32 |
| YFD-250'' | 216 | 17 | 43 | 35 | 2500 | 0.47 | 1.3 | 42 |
| YFD-280'' | 239 | 17 | 43 | 35 | 2200 | 0.88 | 1.3 | 52 |
| YFD-315'' | 261 | 23 | 63.6 | 35 | 2000 | 1.45 | 2 | 80 |
| YFD-360'' | 301 | 23 | 63.6 | 35 | 1700 | 2.05 | 2 | 95 |
| YFD-400'' | 333 | 30 | 86.6 | 35 | 1200 | 3.4 | 4 | 128 |
| YFD-460'' | 395 | 30 | 86.6 | 35 | 1000 | 6.4 | 5 | 170 |
| YFD-570'' | 466 | 40 | 113 | 35 | 800 | 12 | 6 | 285 |
| YFD-680'' | 576 | 40 | 113 | 35 | 600 | 29 | 7 | 490 |

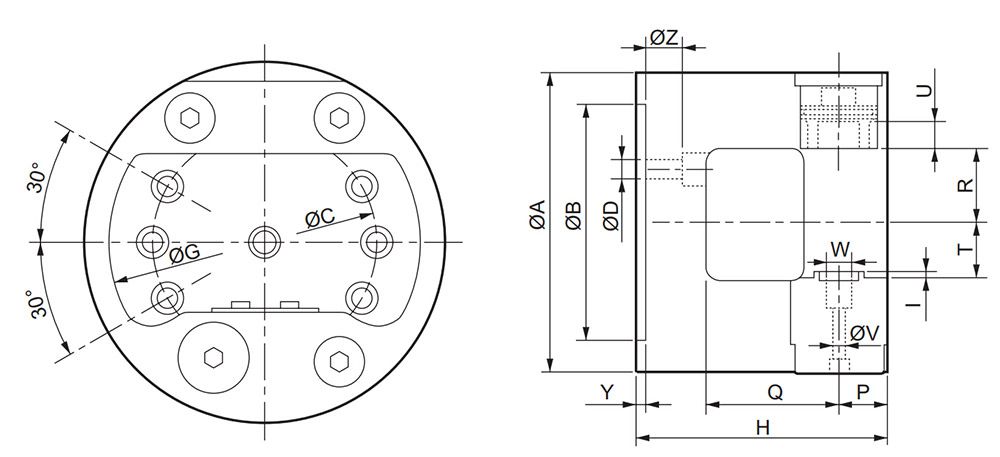

| Size Parameter | |||||||||||||||
| MODEL/SPEC. | A | B | C | D | G | H | I | P | Q | R | T | V | W | Y | Z |
| YFD-168'' | 172 | 140 | 104.8 | 11 | 125 | 152 | 2 | 30 | 46 | 33 | 33 | M8 | 18 | 5 | 30 |
| YFD-210'' | 215 | 170 | 133.4 | 13 | 175 | 180 | 3 | 35 | 95 | 48 | 36 | M8 | 20 | 6 | 28 |
| YFD-235'' | 235 | 170 | 133.4 | 13 | 197 | 190 | 3 | 35 | 102 | 53 | 40 | M8 | 25 | 8 | 28 |
| YFD-250'' | 254 | 220 | 171.4 | 17 | 216 | 210 | 3 | 44 | 112 | 56 | 46 | M8 | 25 | 10 | 32 |
| YFD-280'' | 275 | 220 | 171.4 | 17 | 239 | 218 | 3 | 44 | 125 | 70 | 58 | M8 | 25 | 12 | 32 |
| YFD-315'' | 315 | 220 | 171.4 | 17 | 261 | 235 | 3 | 50 | 136 | 77 | 63 | M10 | 25 | 12 | 29 |
| YFD-360'' | 360 | 220 | 171.4 | 17 | 301 | 260 | 3 | 50 | 150 | 100 | 86 | M10 | 25 | 12 | 29 |
| YFD-400'' | 400 | 300 | 235 | 21 | 333 | 291 | 3 | 58 | 170 | 110 | 91 | M10 | 25 | 12 | 24 |
| YFD-460'' | 460 | 300 | 235 | 21 | 395 | 321 | 3 | 58 | 200 | 140 | 121 | M10 | 25 | 12 | 24 |
| YFD-570'' | 570 | 380 | 330.2 | 27 | 466 | 435 | 5 | 85 | 270 | 180 | 150 | M10 | 50 | 18 | 50 |
| YFD-680'' | 680 | 380 | 330.2 | 27 | 576 | 485 | 5 | 85 | 320 | 235 | 205 | M10 | 50 | 18 | 50 |
