产品详情
■ 以上产品数据仅供参考，可根据工件需求进行更改，并可根据工件及加工需求定制各种非标产品。
■ 产品持续改进，本目录参数如有变更，请咨询本公司，最终确认参数以最终确认为准！
产品型号
产品参数

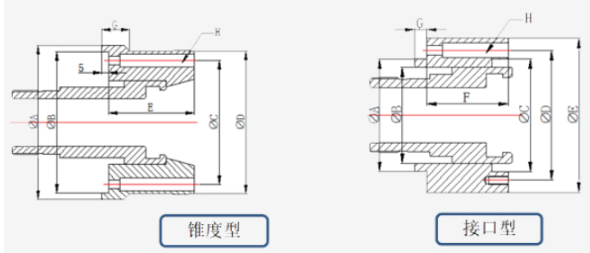

| Product Model | Product Parameters | |||||||
| A | B | C | D | E | F | G | H | |
| JHP-32 | 107 | 98 | 86 | 99 | 40-100 | 5 | 20 | 6-M5 |
| Taper type | Counterbore | |||||||
| JHP-72 | 137 | 128 | 118 | 130 | 45-100 | 5 | 20 | 6-M5 |
| Taper type | Counterbore | |||||||
| JHP-95 | 165 | 156 | 143 | 158 | 50-100 | 5 | 20 | 6-M5 |
| Taper type | Counterbore | |||||||
| JHP-120 | 198 | 188 | 174 | 187 | 60-150 | 5 | 20 | 6-M5 |
| Taper type | Counterbore | |||||||
| Product Model | Product Parameters | |||||||
| A | B | C | D | E | F | G | H | |
| JHP-32 | 68 | 58 | 68 | 78 | 93 | 30-100 | 7 | 6-M5 |
| interface type | Counterbore | |||||||
| JHP-72 | 110 | 98 | 110 | 118 | 136 | 30-100 | 15 | 6-M5 |
| interface type | Counterbore | |||||||
| JHP-95 | 134 | 124 | 134 | 143 | 156 | 40-100 | 15 | 6-M5 |
| interface type | Counterbore | |||||||
| JHP-120 | 158 | 148 | 159 | 168 | 182 | 50-150 | 15 | 6-M6 |
| interface type | Counterbore | |||||||
