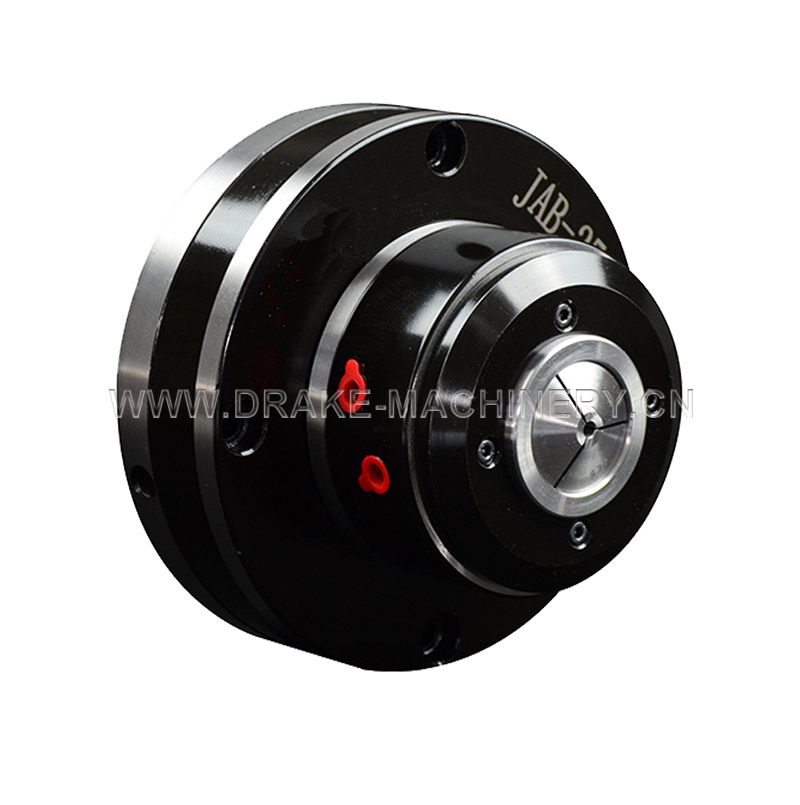

Product Features:
This chuck can be used in either internal or external clamp configurations.
Heat-treated steel integrally formed structure, bearing no load, high speed, long life and low temperature rise.
Two-way power, forced open collet, never jam. When the air source is interrupted, the collet is self-locking.
The direct flange is connected to the main shaft for quick and easy installation. It can be connected to the machine system through a three-point combination valve.
Quickly change the collet to facilitate product replacement, the collet does not retract, and the working length can be controlled normally.
The body accuracy is within 0.01mm.
Product Suitability:
NC lathes, lathes, grinding machines, indexing plates, 4/5 axes.
Turning of batch workpieces.
产品型号
产品参数
Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
Performance Parameters
| Model/Spec. | Max. speed (rpm) | Piston stroke (mm) | Clamping torque (kg/cm²) | Working pressure (kg/cm²) | Max.chuck diameter (mm) | Net weight (kg) |
| JAB-15 | 4000 | 4 | 3 | 38 | 15 | 3.2 |
| JAB-25 | 4000 | 4 | 3 | 38 | 25 | 9.5 |
| JAB-40 | 4000 | 4 | 4.5 | 38 | 40 | 13.5 |
| JAB-60 | 4000 | 4 | 7.8 | 38 | 60 | 20.35 |
Size Parameters

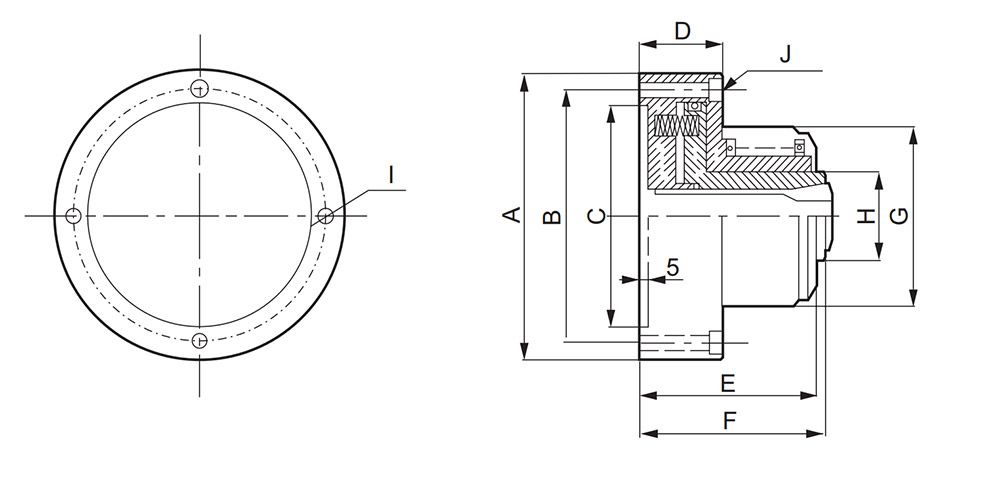

| Model/Spec. | A | B | C (H6) | D | E | F | G | H | J |
| JAB-15 | 100 | 84 | 70 | 40 | 82 | 85 | 71 | 30 | 4-M6 |
| JAB-25 | 167 | 147 | 130 | 48 | 103 | 108 | 104 | 52 | 4-M8 |
| JAB-40 | 187 | 168 | 150 | 50 | 118 | 122 | 133 | 72 | 4-M8 |
| JAB-60 | 220 | 203 | 170 | 55 | 125 | 130 | 168 | 100 | 4-M10 |
Note: The clamping torque is measured by clamping a 20 mm round bar at 6 kg/cm2.
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.
★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
