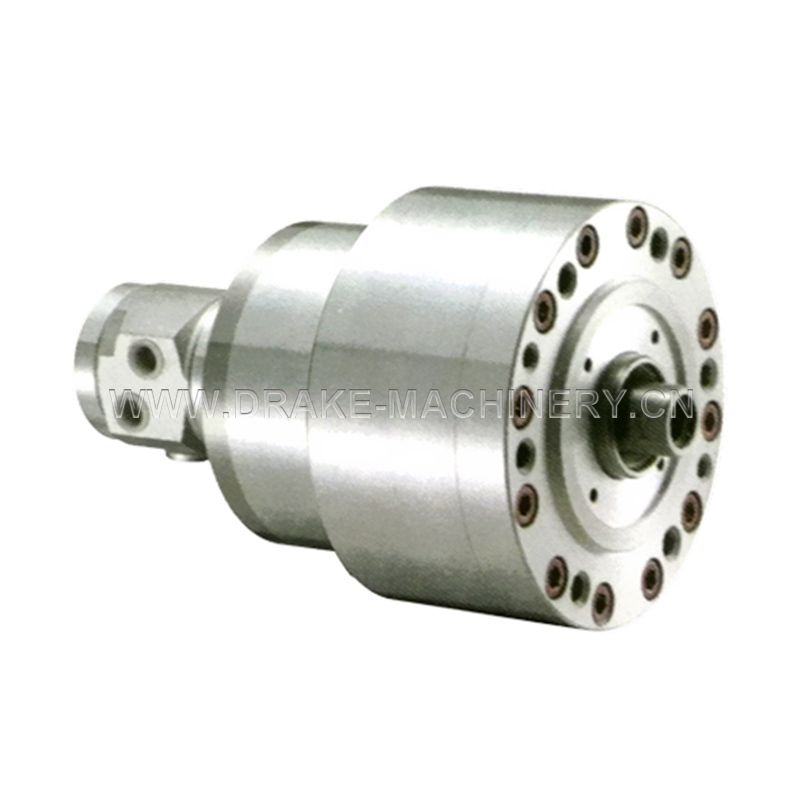

● The cylinder body is made of high quality aluminum alloy, lightweight， small and durable.
● Two piston rod can be controlled independently.

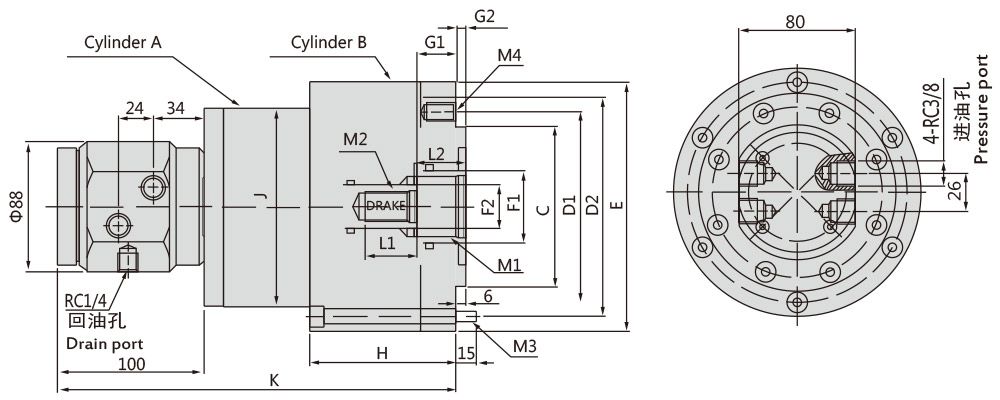

| Dimensions(mm) | |||||||||||||||||||||
| Spec | A | B | C(h7) | D1 | D1 | E | F1 | F2(H8) | G1 | G2 | H | J | K | L1 | L2 | M1 | M2 | M3 | M4 | ||
| Model | max | min | max | min | |||||||||||||||||
| RY-100-130BK | 100 | 130 | 110 | 130 | 150 | 170 | 50 | 30 | 8 | -27 | 41 | 6 | 100 | 135 | 280 | 35 | 45 | M42x1.5 | M20 | M8x105 | 6-M12 |
| Specifications | ||||||||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | |||||||
| Model | Extend | Retract | Extend | Retract | ||||||||||
| A | B | A | B | A | B | A | B | A | B | |||||
| RY-100-130BK | 76.9 | 124 | 69.9 | 111.4 | 35 | 35 | 4000 | 35(3.5) | 2690(26.3) | 4340(42.5) | 2445(24) | 3900(38.2) | 0.2 | 16 |
The drain port should be independently connected to oil tank to avoid back pressure.
