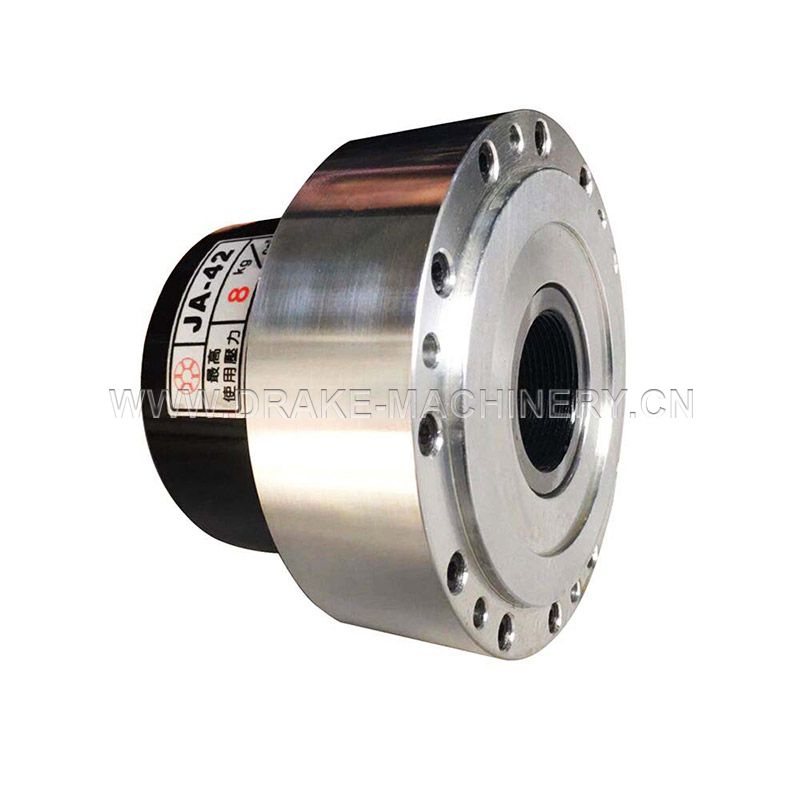

● 150 series hollow air pressure rotary cylinder is the high-speed,high-performance single cylinder rotary cylinder.
● Specially designed for the 3 jaw chuck and collet chuck of high speed small CNC lathe.
● 150 rotary cylinder drives front passive chuck by compressing air. Two forms of work: thrust and pull.
● Cylinder block does not produce heat when the pneumatic rotary cylinder works.
● The work piece does not fall off when the air source interrupted, with Spring lock inside.
产品型号
产品参数

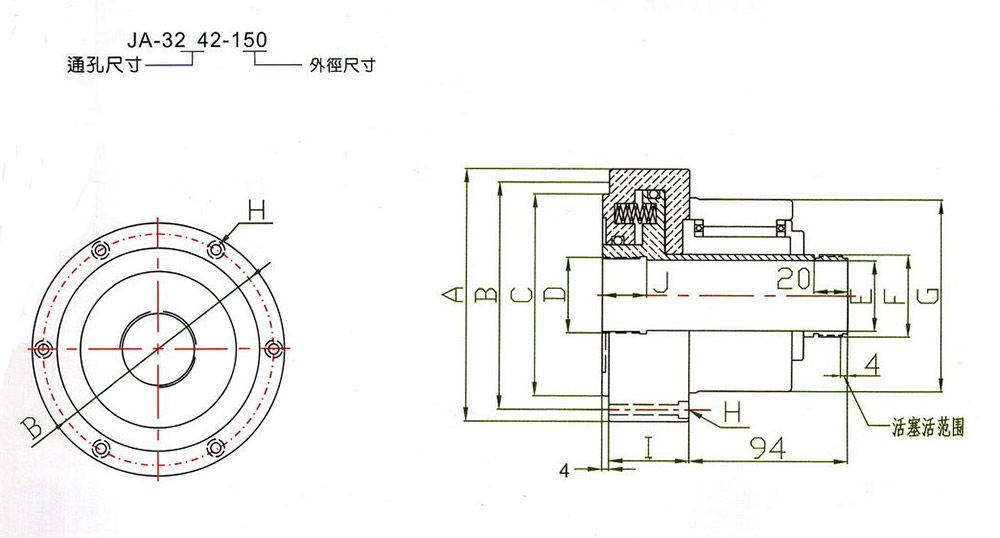

| Rotary air pressure high speed collet | A | B | C | D | E | F | G |
| JA42D(P)150 | φ150 | φ136 | φ120 | M45×2.0 | φ42.2 | M49×1.5 | φ114 |
| Rotary air pressure high speed collet | H | I | J | Maximum pulling force | Air pressure used | Maximum speed | Weight |
| JA42D(P)150 | φ7/φ11 | 47 | 26 | 850 | 3-8 | 4000 | 6.2kg |
