产品详情
1. 以SL T系列伺服刀塔为平台，加装外部动力模块，组成SL TR系列径向动力刀塔伺服系统，布局合理紧凑。
2. 高精度三齿端面联轴器和液压松紧夹紧装置，分度精度高，夹紧可靠。
3. 独立主轴伺服电机控制简单，提供刀具驱动力。模块化接口可适配多种主轴电机，最大功率可达11kW。
4. BMT驱动刀架可安装在刀塔各个位置，并仅在工作位置进行操作。刀架类型符合斗山（DOOSAN）制造商标准，联轴器接口类型符合DIN1809标准。

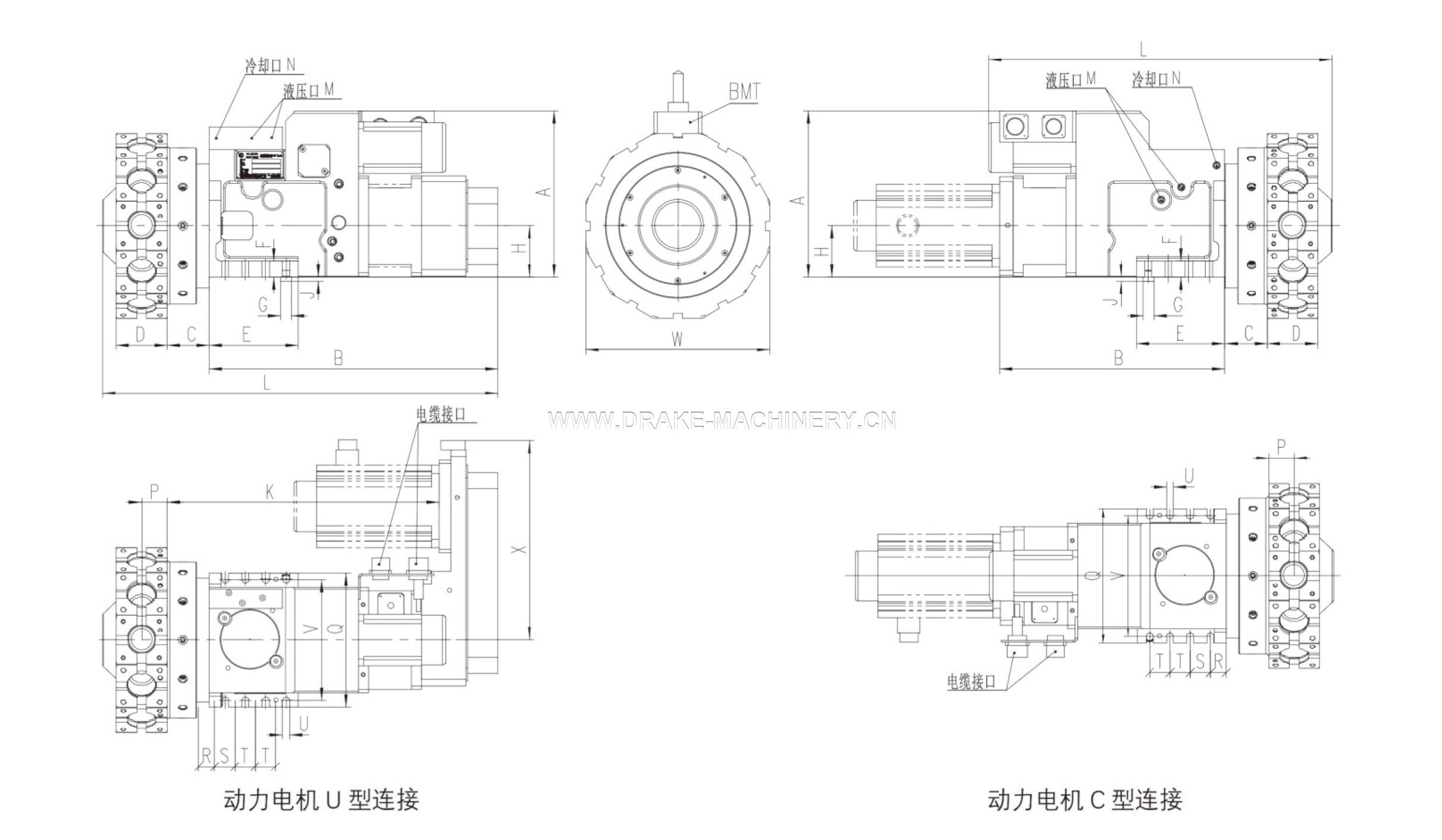

产品型号
产品参数
MAIN SPECIFICATIONS
| ltem | unit | Model | |||
| R63A | R80A | R100A | R125A | ||
| Center height | mm | 63 | 80 | 100 | 125 |
| workstation | 8；12 | 8；12 | 12 | 12 | |
| power tool speed | rpm | 6000 | 5000 | 4000 | 3500 |
| rotating time（including locking) | sec. | 0.23 | 0.35 | 0.42 | 0.84 |
| total indexing time for 180（including locking） | sec. | 0.55 | 0.76 | 0.83 | 1.56 |
| clamping force | kg | 1700 | 2600 | 3500 | 5200 |
| hydraulic working pressure | mpa | 3.5±0.5 | |||
| flow rate | L/min | 18 | 20 | 25 | 30 |
| inertia of transportable masses | kg.m² | 0.5 | 1.5 | 4 | 7 |
| unbalancing torque | N.m | 10 | 15 | 40 | 60 |
| indexing accuracy | ±4" | ||||
| accuracy of repeatability | ±1.6" | ||||
| toolholder size | mm | ∅40; ∅45 | ∅45; ∅55 | ∅55; ∅65 | ∅65 |
| toolholder type | BMT | ||||
| toolshank coupling | DIN1809 | ||||
| Max power（S3-40%-10min） | kw | 2.2 | 3.7 | 5.5 | 7.5 |
| Motor （FANUC)(No available） | α1.5/10000i | α2/10000i | α3/10000i | α6/10000i | |
| Motor and tool transmission ratio | 1；1 | 1；1 | 1；1 | 1；1 | |
| Weight(Not including motor) | kg | 103 | 120 | 185 | 245 |
