产品详情
产品特点：

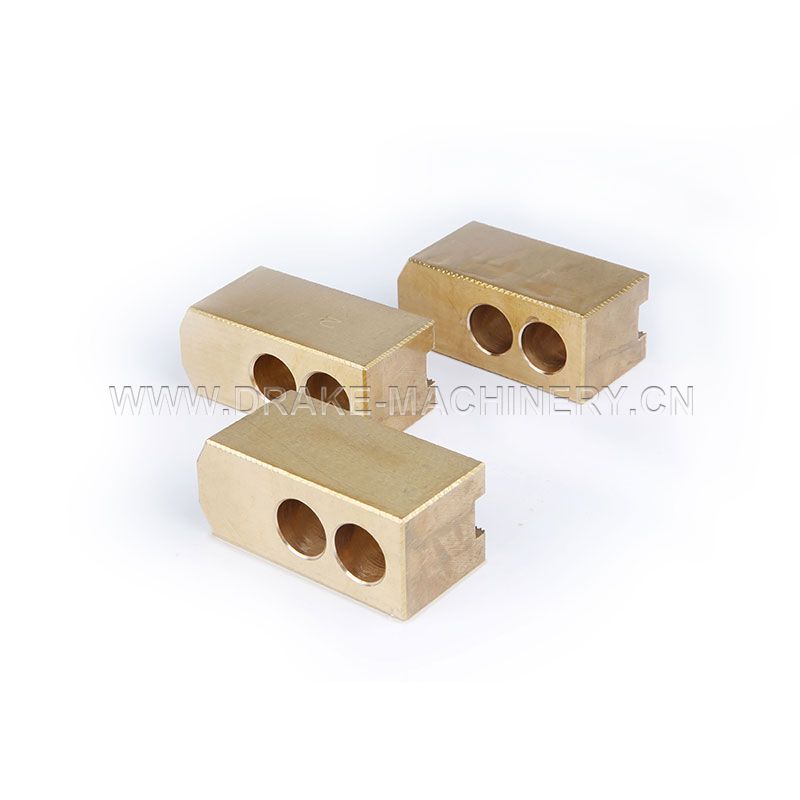

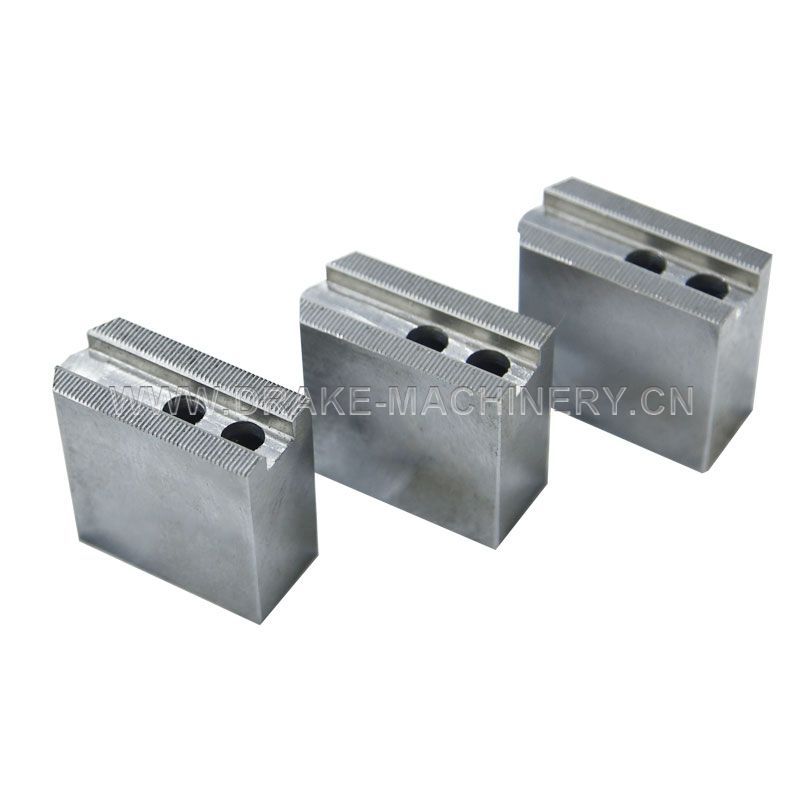

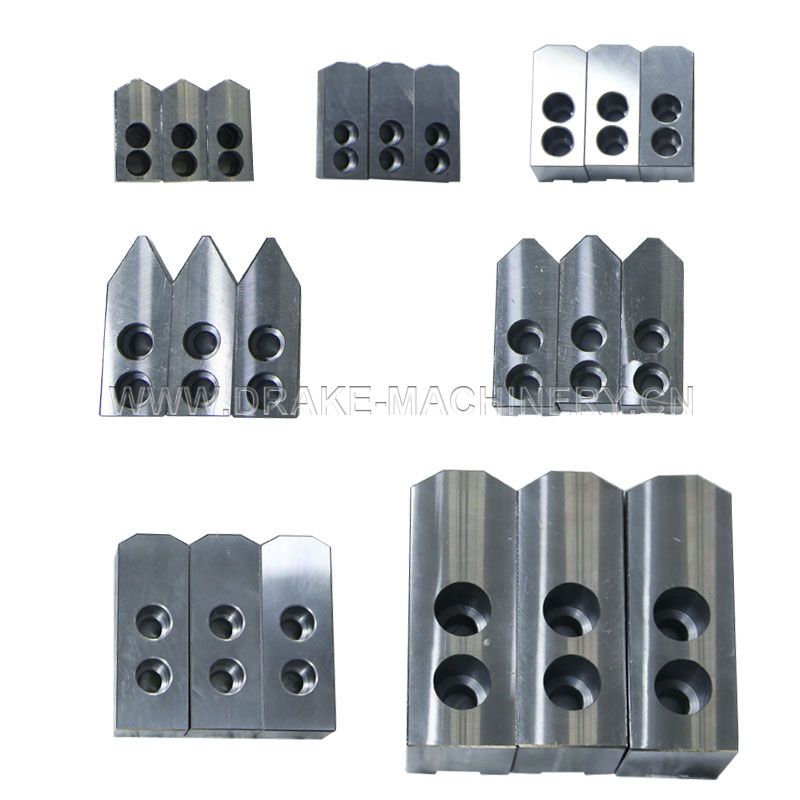

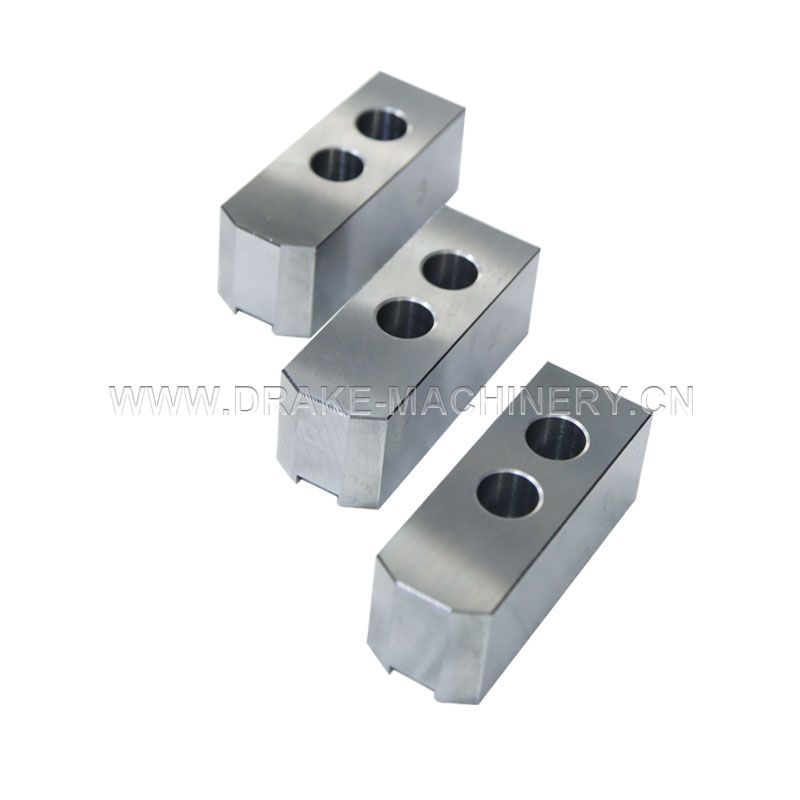

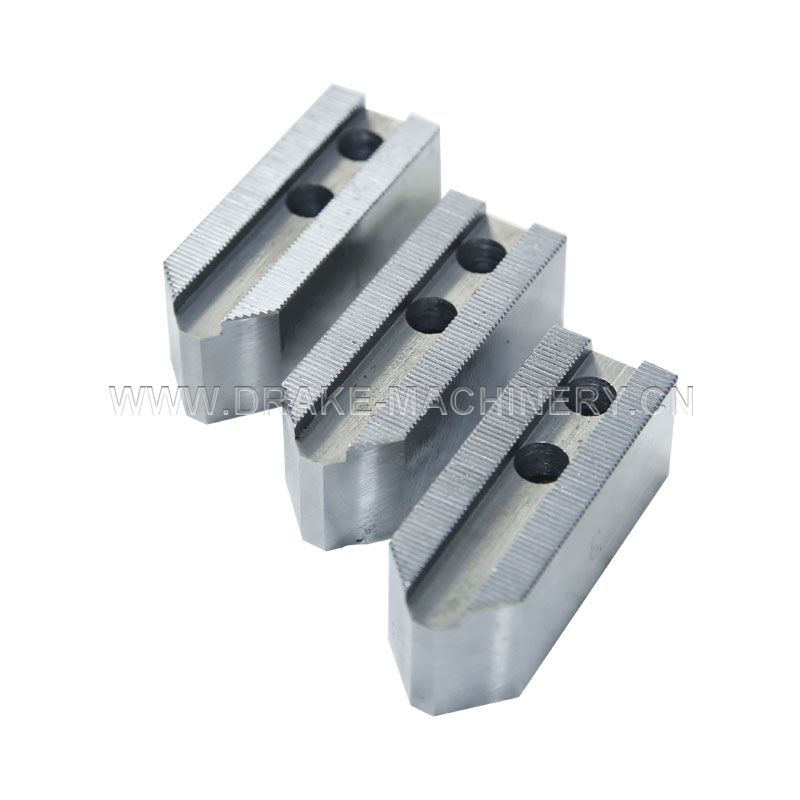

适用于数控机床的软爪。
产品型号
产品参数

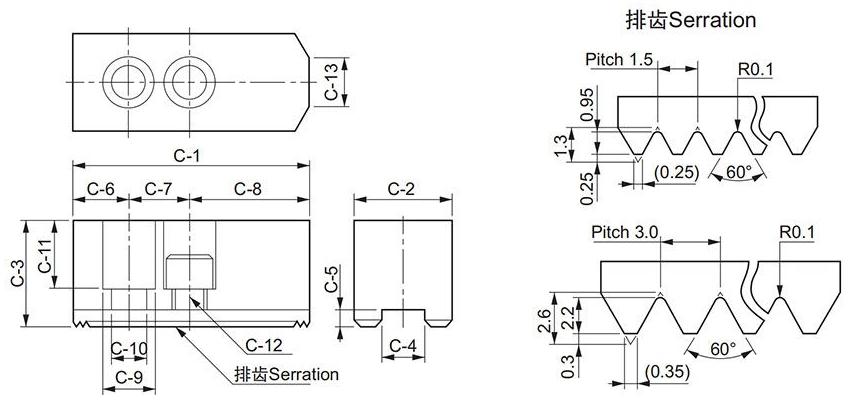

| 尺寸参数 | |||||||||||||||
| 型号 | C-1 | C-2 | C-3 | C-4 | C-5 | C-6 | C-7 | C-8 | C-9 | C-10 | C-11 | C-12 | C-13 | 齿数 节距 | 3爪重量（kg） |
| HC04 | 53 | 23 | 23 | 10 | 5 | 9 | 14 | 30 | 14 | 9 | 14 | M8 | 3 | 1.5×60° | 0.45 |
| HC05 | 62 | 25 | 30 | 10 | 5 | 9 | 14 | 39 | 14 | 9 | 21 | M8 | 5 | 1.5×60° | 0.7 |
| HC06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 1.5 |
| HC08 | 95 | 35 | 37 | 14 | 5 | 24 | 25 | 46 | 19 | 13 | 22 | M12 | 16 | 1.5×60° | 2.4 |
| HC10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | 19 | 13 | 27 | M12 | 18 | 1.5×60° | 3.7 |
| HC12 | 130 | 50 | 50 | 21 | 5 | 39 | 30 | 61 | 25 | 17 | 33 | M16 | 23 | 1.5×60° | 6.5 |
| HC15 | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | / | 1.5×60° | 12.5 |
| HC08-1 | 95 | 35 | 37 | 12 | 5 | 24 | 20 | 51 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 2.4 |
| HC12-1 | 130 | 50 | 50 | 18 | 5 | 39 | 30 | 61 | 23 | 15 | 30 | M14 | 23 | 1.5×60° | 6.6 |
| HC15-1 | 165 | 62 | 62 | 25.5 | 5 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | / | 1.5×60° | 12.5 |
| HC24-1 | 180 | 64 | 70 | 25 | 9 | 40 | 60 | 80 | 32 | 21 | 45 | M20 | / | 3.0×60° | 15.8 |
| HC32-1 | 210 | 74 | 90 | 25 | 9 | 40 | 80 | 90 | 32 | 21 | 65 | M20 | / | 3.0×60° | 29.2 |
