产品型号
产品参数

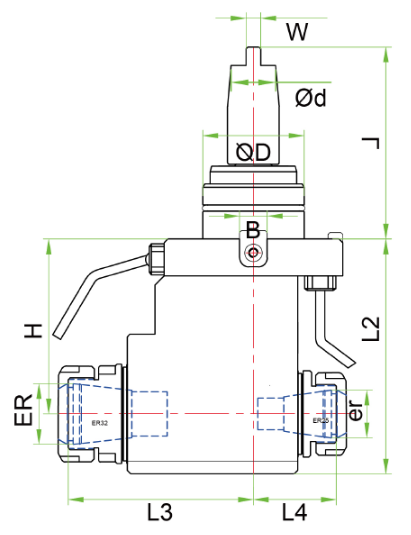

| Model | φD | B | W | L | L2 | L3 | L4 | ER | er | H | Noise at 2500 rpm | Temperature at 2500 rpm | r/min | Fixing screw | Hole spacing |
| MT40LR-75H/ER20 | 40 | 12 | 6 | 61 | 117.5 | 103.5 | 43.5 | 20 | 20 | 75 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M8 | 50*60 |
| BMT45LR-85H/ER25 | 45 | 15 | 6 | 83 | 117.5 | 103.5 | 43.5 | 25 | 25 | 85 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M8 | 58*58 |
| BMT55LR-85H/ER32-25 | 55 | 15 | 8 | 102.5 | 117.5 | 112.5 | 43.5 | 32 | 25 | 85 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M10 | 64*64 |
| MT65LR-85H/ER32-25 | 65 | 18 | 10 | 112 | 117.5 | 112.5 | 43.5 | 32 | 25 | 85 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M12 | 73*70 |
