产品型号
产品参数

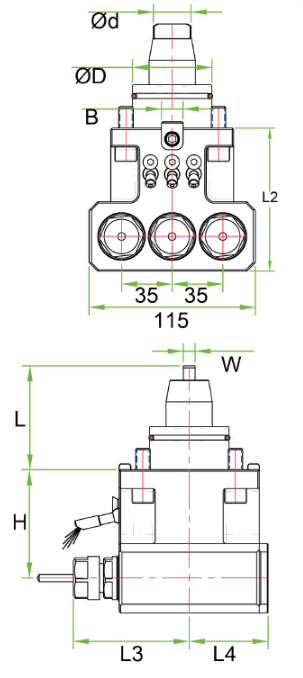

| Model | φD | B | W | L | L2 | L3 | L4 | φd | ER | H | Noise at 2500 rpm | Temperature at 2500 rpm | r/min | Fixing screw | Hole spacing |
| BMT40-90T3 | 40 | 12 | 6 | 61 | 94 | 70 | 46.5 | 20 | 16 | 70 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M8 | 50*60 |
| BMT45-90T3 | 45 | 15 | 6 | 83 | 94 | 73.5 | 50.5 | 20 | 16 | 70 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M8 | 58*58 |
| BMT55-90T3 | 55 | 15 | 8 | 102.5 | 99 | 80 | 54.5 | 22 | 16 | 75 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M10 | 64*64 |
| BMT65-90T3 | 65 | 18 | 10 | 112 | 99 | 83 | 57.5 | 24 | 16 | 75 | ≤80dB(A) | ≤707 | ≤6000 | 4-M12 | 73*70 |
